- Product Specs
-
Additional Information

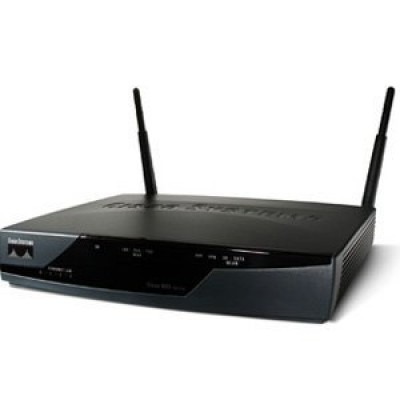

Manufacturer CISCO Manufacturer Part Number CISCO871-SEC-K9 SKU GROUP-128893 Ethernet Technology Fast Ethernet Featured product Yes Flash Memory 28 MB Marketing Information - The Cisco 871 Integrated Services Router extend the high-performance Cisco Integrated Services Router capabilities of running secure concurrent services, including firewall, VPNs, at broadband speeds to small offices. Easy deployment and centralized management features enable the Cisco 871 to be deployed in small office or teleworker sites as part of an enterprise network, by small to medium business customers for secure WAN connectivity, or used by service providers to offer business-class broadband services.
- This router come with Advanced IP Services Feature Set installed.
Description The Cisco 871 Integrated Services Router extend the high-performance Cisco Integrated Services Router capabilities of running secure concurrent services, including firewall, VPNs, at broadband speeds to small offices. Easy deployment and centralized management features enable the Cisco 871 to be deployed in small office or teleworker sites as part of an enterprise network, by small to medium business customers for secure WAN connectivity, or used by service providers to offer business-class broadband services. Series cisco 800 Height 2" Width 10.3" Depth 8.5" Brand Cisco Broadband Transmission Technology ADSLoISDN Certifications & Standards - IEEE:
- IEEE 802.1x
- IEEE 802.1d
- IEEE 802.3
- IEEE 802.3u
- DSL Specifications:
- T1.413 ANSI ADSL DMT issue 2
- G.992.1 ITU G.DMT support
- G.992.3 ITU G.hs ADSL type negotiation
- DSL Forum TR-067
- Immunity:
- IEC 61000-4-2:1995 Immunity to Electrostatic Discharges
- IEC 61000-4-3:1995 Immunity to Radio Frequency Electromagnetic Fields
- IEC 61000-4-4:1995 Immunity to Electrical Fast Transients
- IEC 61000-4-5:1995vImmunity to Power Line Transients (Surges)
- IEC 61000-4-6:1996 Immunity to Radio Frequency Induced Conducted Disturbances
- IEC 6100-4-8: 1003 Immunity to Power-Frequency Magnetic Fields (N/A for most of Cisco equipment)
- IEC 61000-4-11:1995 Immunity to Voltage Dips, Voltage Variations, and Short Voltage Interruptions
- Approvals and Compliance:
- UL 1950/ CSA 950-95, Third Edition
- IEC 950:Second Edition with Amendments 1, 2, 3, and 4
- EN60950: 1992 with Amendments 1, 2, 3, and 4
- CS-03, Canadian Telecom Requirements
- FCC Part 68 U.S. Telecom Requirements
- AS/NZS 3260:1996 with Amendments 1, 2, 3, and 4
- ETSI 300-047
- TS 001 with Amendment 1
- EMI
- AS/NRZ 3548:1992 Class B
- CFR 47 Part 15 Class B
- EN60555-2 Class B
- EN55022 Class B
- VCCI Class II
Form Factor - Wall Mountable
- Desktop
Product Name CISCO871-SEC-K9 Input Voltage - 110 V AC
- 220 V AC
Limited Warranty 1 Year Management Port Yes Maximum Memory 256 MB Memory Technology DRAM Alt Part No CISCO871SECK9 Network Technology 10/100Base-TX Product Type Router Number of Network (RJ-45) Ports 4 Number of Broadband (RJ-45) Ports 1 Additional Information - USB 2.0 ports cannot be used for connecting external devices other than those specified for the Cisco 871
- Virtual Router Redundancy Protocol (VRRP) (RFC 2338)
- Hot Standby Router Protocol (HSRP)
- Routing Protocols:
- Open Shortest Path First (OSPF)
- Border Gateway Protocol (BGP)
- Enhanced Interior Gateway Routing Protocol (EIGRP) QoS Features:
- Priority and custom queuing
- Class-Based Weighted Random Early Detection (CBWRED)
- Network-Based Application Recognition (NBAR)
- Link Fragmentation and Interleaving (LFI)
- Resource Reservation Protocol (RSVP)
- RTP Header compression (Real Time Protocol)
- Differentiated Services (DiffServ)
- QoS Preclassify & Pre-fragmentation
- Class-Based Marking (CBM)
Security Features - Stateful Inspection Firewall
- NAT transparency
- Firewall support for skinny clients
- Hardware-accelerated 3DES for IPSec
- Hardware-accelerated AES for IPSec
- Cisco Easy VPN Client and Server
- RADIUS and TACACS+
- IPSec 3DES termination/initiation
- IPSec passthrough
- Point-to-Point Tunneling Protocol (PPTP) passthrough
- L2TP passthrough
- 802.1X
- Secure HTTP (HTTPS), FTP, and Telnet authentication proxies
- 10 VPN Tunnels
- Advanced Application Inspection and Control
- E-mail Inspection Engine
- No Service Password Recovery
- HTTP Inspection Engine
- System Logging-EAL4 Certification Enhancements
- Easy VPN Remote Web Based Activation
- Intrusion detection system/intrusion prevention system (IDS/IPS)
- Dynamic Multipoint VPN (DMVPN) (multipoint GRE and Next Hop Resolution Protocol [NHRP])
- Lock and Key
- URL filtering: Websense and N2H2
- Digital certificates (PKI)
- Network Admissions Control (NAC)
SKU UNSPSC 43222609 SKU UPC 8.83E+11 Standard Memory 128 MB Total Number of Ports 5 Usb Yes - Description
-
Details
The Cisco 871 Integrated Services Router extend the high-performance Cisco Integrated Services Router capabilities of running secure concurrent services, including firewall, VPNs, at broadband speeds to small offices. Easy deployment and centralized management features enable the Cisco 871 to be deployed in small office or teleworker sites as part of an enterprise network, by small to medium business customers for secure WAN connectivity, or used by service providers to offer business-class broadband services. - Reviews
-
