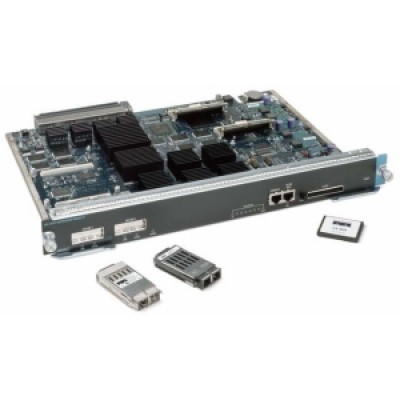

Manufacturer CISCO Manufacturer Part Number WS-X4515 SKU GROUP-213444 Featured product Yes Description The Cisco Catalyst 4000 Family Supervisor Engine IV integrates nonblocking Layer 2/3/4 switching with integrated resiliency, further enhancing control of converged networks. Converged voice/video/data networks with high availability enable business resiliency for enterprise and metropolitan (metro) Ethernet customers deploying Internet-based business applications. Series Cisco Catalyst 4500 Application/Usage Data Networking Brand Cisco Compatibility - Cisco Catalyst 4006
- Cisco Catalyst 4503
- Cisco Catalyst 4506
- Cisco Catalyst 4507R
Expansion Slot Type GBIC Product Name CISCO WS-X4515 Input Voltage - 110 V AC
- 220 V AC
Interfaces/Ports Details - 1 x RJ-45 Female Console Management
- 1 x RJ-45 Female 10/100Base-TX Management
- 1 x RJ-45 10/100Base-TX LAN
Limited Warranty 90 Maximum Data Transfer Rate 100 Mbit/s Media Type Twisted Pair Alt Part No WSX4515 Product Type Supervisor Engine Additional Information - Layer 2 Features:
- Layer 2 hardware forwarding at 48 Mpps
- Layer 2 switch ports and VLAN trunks
- IEEE 802.1Q VLAN encapsulation
- Inter-Switch Link (ISL) VLAN encapsulation (excluding blocking ports on WS-X4418-GB and WS-X4412-2GB-T)
- Dynamic Trunking Protocol (DTP)
- VLAN Trunking Protocol (VTP) and VTP domains
- Support for 4096 VLANs per switch
- Per-VLAN spanning tree (PVST) and PVST+
- Spanning-tree PortFast and PortFast guard
- Spanning-tree UplinkFast and BackboneFast
- 802.1s
- 802.1w
- Spanning-tree root guard
- Cisco Discovery Protocol
- IGMP snooping v1 and v2
- Cisco EtherChannel, Fast EtherChannel, and Gigabit EtherChannel technology across line cards
- Port Aggregation Protocol (PAgP)
- Unidirectional link detection (UDLD) and aggressive UDLD
- QinQ pass-through
Power Source Power Supply Processor Speed 333 MHz Shipping Weight (Approximate) 8.30 lb NSN Part Number 5.90E+12 SKU UNSPSC 43222600 SKU UPC 7.46E+11 - Description
-
Details
The Cisco Catalyst 4000 Family Supervisor Engine IV integrates nonblocking Layer 2/3/4 switching with integrated resiliency, further enhancing control of converged networks. Converged voice/video/data networks with high availability enable business resiliency for enterprise and metropolitan (metro) Ethernet customers deploying Internet-based business applications. - Reviews
-
