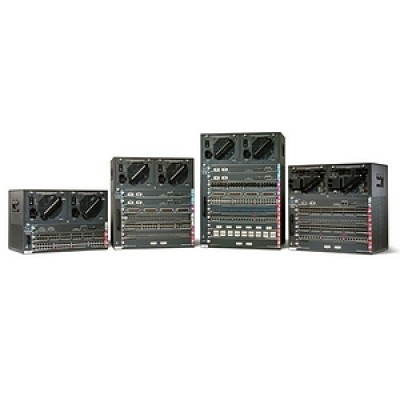

CISCO WS-C4510R

SKU :
GROUP-212310
Quick Overview
10 Slot

In stock

MFR Part # Condition Our Price
WS-C4510R REF
WS-C4510R USED
Request Quote
OR

100% Secure

100% Money-Back Guarantee

Best Price

Paypal world seller

PRODUCT SPECS

Additional Information

Manufacturer CISCO
SKU GROUP-212310
Marketing Information
  • The Cisco Catalyst 4510R offers nonblocking Layers 2 through 4 switching with integrated resiliency, further enhancing control of converged networks. Converged voice, video, and data networks with high availability enable business resiliency for enterprise and metropolitan (metro) Ethernet customers deploying Internet-based business applications.
  • An important component of Cisco AVVID (Architecture for Voice, Video and Integrated Data), the Cisco Catalyst 4510R extends control to the network edge with intelligent network services, including sophisticated quality of service (QoS), predictable performance, advanced security, comprehensive management, and integrated resiliency. Offering compatibility with Cisco Catalyst 4000 Series line cards and Supervisor Engines, the Cisco Catalyst 4510R provides an extended window of deployment for the Cisco Catalyst 4000 Series in converged networks. This reduces the cost of ownership by minimizing recurring operational expenses, improving return on investment (ROI).
Description 10 Slot
Series Cisco Catalyst 4500
Height 24.4"
Width 17.3"
Depth 12.5"
Additional Warranty Information Warranty includes hardware replacement with a 10-day turnaround from return to manufacturer authorization (RMA)
Certifications & Standards
  • Ethernet:
  • IEEE 802.3: 10BASE-T
  • Fast Ethernet:
  • IEEE 802.3u: 100BASE-TX, 100BASE-FX
  • Gigabit Ethernet:
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3ab
  • 1000BASE-X (GBIC):
  • 1000BASE-SX
  • 1000BASE-LX/LH
  • 1000BASE-ZX
  • Virtual LAN (VLAN) trunking/tagging:
  • IEEE 802.1Q
  • IEEE 802.3ad
  • Spanning-Tree Protocol:
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • Security:
  • IEEE 802.1x
  • Power over Ethernet (PoE):
  • IEEE 802.3af
  • RFCs:
  • RFCs 1155-1157
  • RFC 1643
  • RFC 1516
  • RFC 1213
  • RFC 1757
  • RFC 2021
  • RFC 1573
  • RFC 1493
  • Regulatory compliance:
  • CE marking
  • Safety:
  • UL 60950
  • CAN/CSA-C22.2 No. 60950
  • EN 60950
  • IEC 60950
  • TS 001
  • AS/NZS 3260
  • EMC:
  • FCC Part 15 (CFR 47) Class A
  • ICES-003 Class A
  • EN55022 Class A
  • CISPR22 Class A
  • AS/NZS 3548 Class A
  • VCCI Class A
  • EN 55022
  • EN 55024
  • EN 61000-6-1
  • EN 50082-1
  • EN 61000-3-2
  • EN 61000-3-3
  • ETS 300 386
  • Industry EMC, safety, and environmental standards:
  • GR-63-Core Network Equipment Building Standards (NEBS) Level 3
  • GR-1089-Core Level 3
  • ETS 300 019 Storage Class 1.1
  • ETS 300 019 Transportation Class 2.3 (pending)
  • ETS 300 019 Stationary Use Class 3.1
  • ETS 300 386
  • Telecom (E1):
  • CTR 12/13
  • CTR 4
  • ACA TS016
  • Telecom (T1):
  • FCC Part 68
  • Canada CS-03
  • JATE Green Book
Product Name Catalyst 4510R Switch Chassis
Layer Supported 4
Limited Warranty 90 Day
Manageable Yes
Management
  • Support provided by Cisco Works Resource Manager Essentials (a component of LAN Management Solution [LMS]):
  • Builds and maintains an up-to-date hardware and software inventory
  • Maintains an active archive and simplifies deployment of configuration changes to multiple devices
  • Simplifies and accelerates software image analysis and automates deployment
  • Records and displays comprehensive reports of software, hardware, and configuration changes
  • Highlights critical devices and their ability to respond
  • Isolates network error conditions and suggests probable causes
  • Support provided by Cisco Works Resource Manager Essentials (a component of LMS):
  • Network topology discovery and display services
  • VLAN provisioning and logical display representation
  • Traffic monitoring and performance assessment
  • End station tracking with search utilities
  • CiscoView graphical device management
  • Network topology integrity checking
  • Simple Network Management Protocol (SNMP) Version 1
  • SNMP Version 2c
  • Cisco Workgroup Management Information Base (MIB)
  • Ethernet MIB
  • Ethernet Repeater MIB
  • SNMP MIB II
  • Remote Monitoring (RMON)
  • RMON II
  • Interface table
  • Bridge MIB
  • Switched Port Analyzer (SPAN)
  • Enhanced Switched Port Analyzer (ESPAN)
  • Port snooping and connection steering
  • Telnet, Trivial File Transfer Protocol (TFTP), and Bootstrap Protocol (BOOTP) for management access
Alt Part No WSC4510R
Product Type Switch Chassis
Number of Total Expansion Slots 10
Additional Information Number of Power Supply Bays: 2
Power Source Power Supply
Product Line Catalyst
NSN Part Number 5.98E+12
SKU UNSPSC 43222612
System Requirements The 1400W AC and 2800W AC power supplies are required to support a fully loaded Catalyst 4510R. The 1000W AC and 1300W AC power supplies can be deployed in the 4510R; however, power management is required
