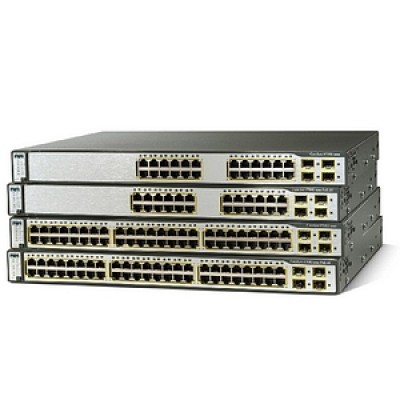

CISCO WS-C3750G-24PS-S

MSRP: $7,795.00
SKU :
GROUP-212024
Quick Overview
Total Number of Network Ports: 24
Number of Network (RJ-45) Ports: 24
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network/ 4 x Gigabit Ethernet Expansion Slot
Network Technology: 10Base-T/ 10/100/1000Base-T

In stock

MFR Part # Condition Our Price Qty
WS-C3750G-24PS-S NEW
$910.00
WS-C3750G-24PS-S REF
$235.00
Request Quote
OR

100% Secure

100% Money-Back Guarantee

Best Price

Paypal world seller

PRODUCT SPECS

Additional Information

Manufacturer CISCO
Manufacturer Part Number WS-C3750G-24PS-S
SKU GROUP-212024
Ethernet Technology Gigabit Ethernet
Flash Memory 32 MB
Marketing Information The Cisco Catalyst 3750G-24PS Power over ethernet switch is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.
Description The Cisco Catalyst 3750G-24PS Power over ethernet switch is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches.
Series Cisco Catalyst 3750
Height 1.7"
Width 17.5"
Depth 14.9"
Brand Cisco
Certifications & Standards IEEE:

IEEE 802.3

IEEE 802.3u

IEEE 802.1s

IEEE 802.3af

IEEE 802.1w

IEEE 802.1x

IEEE 802.3ad

IEEE 802.3ae

IEEE 802.3x

IEEE 802.1D

Management:

BRIDGE-MIB

CISCO-CDP-MIB

CISCO-CLUSTER-MIB

CISCO-CONF-MAN-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

CISCO-ENVMON-MIB

CISCO-FLASH-MIB

CISCO-FTP-CLIENT-MIB

CISCO-HSRP-MIB

CISCO-HSRP-EXT-MIB

CISCO-IGMP-FILTER-MIB

CISCO-IMAGE-MIB

CISCO-L2L3-INTERFACE-CONFIG-MIB

CISCO-MAC-NOTIFICATION-MIB

CISCO-MEMORY-POOL-MIB

CISCO-PAGP-MIB

CISCO-PING-MIB

CISCO-PROCESS-MIB

CISCO-RTTMON-MIB

CISCO-STACK-MIB

CISCO-STACKMAKER-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-SYSLOG-MIB

CISCO-TCP-MIB

CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VTP-MIB

ENTITY-MIB

ETHERLIKE-MIB

IF-MIB

IGMP-MIB

IPMROUTE-MIB

OLD-CISCO-CHASSIS-MIB

OLD-CISCO-FLASH-MIB

OLD-CISCO-INTERFACES-MIB

OLD-CISCO-IP-MIB

OLD-CISCO-SYS-MIB

OLD-CISCO-TCP-MIB

OLD-CISCO-TS-MIB

OSPF-MIB (RFC 1253)

PIM-MIB

RFC1213-MIB

RFC1253-MIB

RMON-MIB

RMON2-MIB

RMON I and II standards

SNMPv1, SNMPv2c, SNMPv3

SNMP-FRAMEWORK-MIB

SNMP-MPD-MIB

SNMP-NOTIFICATION-MIB

SNMP-TARGET-MIB

SNMPv2-MIB

TCP-MIB

UDP-MIB

Safety Certifications:

UL to UL 60950, Third Edition

C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition

TUV/GS to EN 60950:2000

CB to IEC 60950 with all country deviations

NOM to NOM-019-SCFI

CE Marking

Electromagnetic Emissions Certifications:

FCC Part 15 Class A

EN 55022: 1998 (CISPR22)

EN 55024: 1998 (CISPR24)

VCCI Class A

AS/NZS 3548 Class A

CE

CNS 13438 Class A

MIC

Telco:

CLEI code; IEEE:; Management:; Safety Certifications:; Electromagnetic Emissions Certifications:; Telco:

Expansion Slot Type SFP
Form Factor Rack-mountable
Product Name CISCO WS-C3750G-24PS-S
Input Voltage 110 V AC

220 V AC

Layer Supported 4
Limited Warranty Lifetime
Manageable Yes
Management Telnet

SNMP v1, v2c, and v3

4000 VLAN IDs are supported

SPAN works across all the ports in a stack

CiscoWorks for network-wide management

Cisco Network Assistant Software

Cisco Cluster Management Suite (CMS) Software

Command-line interface (CLI) for detailed configuration

Web-based tool for quick configuration based on pre-set templates

Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports

Up to 1005 VLANs per switch or stack and up to 128 Spanning-Tree instances per switch are supported.

Embedded Remote Monitoring (RMON) software agent supports 4 RMON groups (history, statistics, alarms, and events)

Management Port Yes
Media Type Twisted Pair
Memory Card Supported CompactFlash
Memory Technology DRAM
Alt Part No WSC3750G24PSS
MTBF 182373 Hour
Model 3750G-16TD-S
Network Technology 10Base-T

10/100/1000Base-T

Product Type Ethernet Switch
Number of Network (RJ-45) Ports 24
Number of SFP Slots 4
Number of Total Expansion Slots 4
Additional Information 11,000 unicast routes

Full dynamic IP routing

Acoustic Noise: 38-44 dB

Configurable up to 1000 IGMP groups and multicast routes

The connector offers a 675W redundant power system (RPS) that supports up to 6 external network devices and provides power to 1 failed device at a time.

Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports.

The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs

Port/Expansion Slot Details 24 x Gigabit Ethernet Network

4 x Gigabit Ethernet Expansion Slot

Power Source Power Supply
Product Line Catalyst
NSN Part Number 5.90E+12
SKU UNSPSC 43222612
SKU UPC 7.46E+11
Standard Memory 128 MB
Total Number of Network Ports 24
Twisted Pair Cable Standard Category 5
Usb Yes
Description

Details

The Cisco Catalyst 3750G-24PS Power over ethernet switch is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches.
