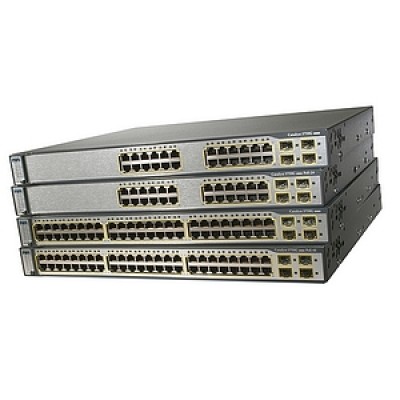

CISCO WS-C3750-24PS-S

MSRP: $4,795.00
SKU :
GROUP-211907
Quick Overview
24 x 10/100Base-TX

In stock

MFR Part # Condition Our Price Qty
WS-C3750-24PS-S REF
$110.00
WS-C3750-24PS-S NEW
$880.00
Request Quote
OR

100% Secure

100% Money-Back Guarantee

Best Price

Paypal world seller

PRODUCT SPECS

Additional Information

Manufacturer CISCO
SKU GROUP-211907
Ethernet Technology Fast Ethernet
Flash Memory 16 MB
Marketing Information

The Cisco Catalyst 3750 Series switches are an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.

Description The Cisco Catalyst 3750 Series switches are an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.
Height 1.7"
Width 17.5"
Additional Warranty Information

In the event of discontinuance of product manufacture, Cisco warranty support is limited to five (5) years from the announcement of discontinuance.

Brand Cisco
Certifications & Standards
  • IEEE 802.3u: 100BASE-TX specification
  • IEEE 802.1s
  • IEEE 802.3af
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ad
  • IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX
  • IEEE 802.1D: Spanning-Tree Protocol
  • Management:
  • BRIDGE-MIB
  • CISCO-CDP-MIB
  • CISCO-CLUSTER-MIB
  • CISCO-CONF-MAN-MIB
  • CISCO-ENTITY-FRU-CONTROL-MIB
  • CISCO-ENVMON-MIB
  • CISCO-FLASH-MIB
  • CISCO-FTP-CLIENT-MIB
  • CISCO-HSRP-MIB
  • CISCO-HSRP-EXT-MIB
  • CISCO-IGMP-FILTER-MIB
  • CISCO-IMAGE-MIB
  • CISCO-L2L3-INTERFACE-CONFIG-MIB
  • CISCO-MAC-NOTIFICATION-MIB
  • CISCO-MEMORY-POOL-MIB
  • CISCO-PAGP-MIB
  • CISCO-PING-MIB
  • CISCO-PROCESS-MIB
  • CISCO-RTTMON-MIB
  • CISCO-STACK-MIB
  • CISCO-STACKMAKER-MIB
  • CISCO-STP-EXTENSIONS-MIB
  • CISCO-SYSLOG-MIB
  • CISCO-TCP-MIB
  • CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
  • CISCO-VLAN-MEMBERSHIP-MIB
  • CISCO-VTP-MIB
  • ENTITY-MIB
  • ETHERLIKE-MIB
  • IF-MIB
  • IGMP-MIB
  • IPMROUTE-MIB
  • OLD-CISCO-CHASSIS-MIB
  • OLD-CISCO-FLASH-MIB
  • OLD-CISCO-INTERFACES-MIB
  • OLD-CISCO-IP-MIB
  • OLD-CISCO-SYS-MIB
  • OLD-CISCO-TCP-MIB
  • OLD-CISCO-TS-MIB
  • OSPF-MIB (RFC 1253)
  • PIM-MIB
  • RFC1213-MIB
  • RFC1253-MIB
  • RMON-MIB
  • RMON2-MIB
  • RMON I and II standards
  • SNMPv1, SNMPv2c, SNMPv3
  • SNMP-FRAMEWORK-MIB
  • SNMP-MPD-MIB
  • SNMP-NOTIFICATION-MIB
  • SNMP-TARGET-MIB
  • SNMPv2-MIB
  • TCP-MIB
  • UDP-MIB
  • Safety Certifications:
  • UL to UL 60950, Third Edition
  • C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
  • TUV/GS to EN 60950:2000
  • CB to IEC 60950 with all country deviations
  • NOM to NOM-019-SCFI
  • CE Marking
  • Electromagnetic Emissions Certifications:
  • FCC Part 15 Class A
  • EN 55022: 1998 (CISPR22)
  • EN 55024: 1998 (CISPR24)
  • VCCI Class A
  • AS/NZS 3548 Class A
  • CE
  • CNS 13438 Class A
  • MIC
  • Telco:
  • CLEI code
Expansion Slot Type SFP
Product Name Catalyst 3750-24PS Stackable Ethernet Switch
Input Voltage
  • 110 V AC
  • 220 V AC
Layer Supported 3
Limited Warranty Lifetime
Manageable Yes
Management
  • Command-line interface (CLI) for detailed configuration
  • Cisco Cluster Management Suite (CMS) Software
  • Web-based tool for quick configuration based on pre-set templates
  • CiscoWorks for network-wide management
  • SNMP v1, v2c, and v3
  • Telnet
Media Type Twisted Pair
Alt Part No WSC375024PSS
MTBF 209170 Hour
Model 3750-24PS
Network Technology
  • 10Base-T
  • 10/100Base-TX
Product Type Ethernet Switch
Number of SFP Slots 2
Number of Total Expansion Slots 2
Additional Information
  • 11,000 unicast routes
  • Configurable up to 1000 IGMP groups and multicast routes
  • Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports
  • Acoustic Noise: 42 dB
  • The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 468 Ethernet or Power over Ethernet 10/100 ports or 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100 and 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs
Port/Expansion Slot Details
  • 24 x Gigabit Ethernet Network
  • 4 x Gigabit Ethernet Expansion Slot
Power Source Power Supply
Product Line Catalyst
Redundant Power Supply Yes
NSN Part Number 5.90E+12
SKU UNSPSC 43222612
SKU UPC 7.46E+11
Standard Memory 128 MB
Total Number of Ports 24
Twisted Pair Cable Standard Category 5
Description

Details

The Cisco Catalyst 3750 Series switches are an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.
