- Product Specs
-
Additional Information

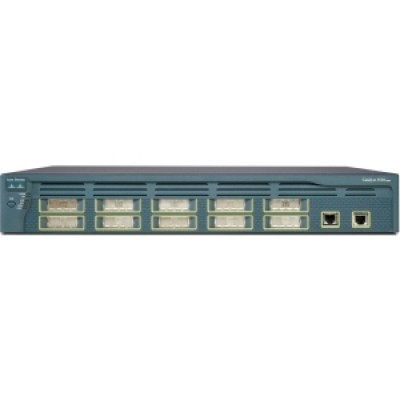

Manufacturer CISCO Manufacturer Part Number WS-C3550-12G SKU GROUP-211582 Ethernet Technology Gigabit Ethernet Flash Memory 16 MB Description 2 x 10/100/1000Base-T Series Cisco Catalyst 3560 Height 2.6" Width 17.5" Depth 15.9" Brand Cisco Certifications & Standards - Safety Certifications:
- UL to UL 1950, Third Edition
- c-UL to CAN/CSA 22.2 No. 950-95, Third Edition
- TUV/GS to EN 60950 with Amendment A1-A4 and A11
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022 Class A (CISPR 22 Class A)
- VCCI Class A
- AS/NZS 3548 Class A
- BSMI
- CE Marking
- Standards:
- IEEE 802.1x
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.1D Spanning-Tree Protocol
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.3ad
- IEEE 802.3 10BASE-T specification
- IEEE 802.3u 100BASE-TX specification
- IEEE 802.3ab 1000BASE-T specification
- IEEE 802.3z 1000BASE-X specification
- 1000BASE-X (GBIC)
- 1000BASE-SX
- 1000BASE-LX/LH
- 1000BASE-ZX
- 1000BASE-CWDM GBIC 1470nm
- 1000BASE-CWDM GBIC 1490nm
- 1000BASE-CWDM GBIC 1510nm
- 1000BASE-CWDM GBIC 1530nm
- 1000BASE-CWDM GBIC 1550nm
- 1000BASE-CWDM GBIC 1570nm
- 1000BASE-CWDM GBIC 1590nm
- 1000BASE-CWDM GBIC 1610nm
- RMON I and II standards
- SNMPv1, SNMPv2c, SNMPv3
Expansion Slot Type GBIC Form Factor Rack-mountable Product Name CISCO WS-C3550-12G Input Voltage - 110 V AC
- 220 V AC
Layer Supported 2 Limited Warranty Lifetime Manageable Yes Management - SNMP
- Telnet
- RMON
- CWSI
- CLI-based out-of-band
- embedded CMS
Management Port Yes Media Type Twisted Pair Memory Card Supported CompactFlash Alt Part No WSC355012G MTBF 110332 Hour Model 3550-12G Network Technology - 10Base-T
- 10/100/1000Base-T
Product Type Ethernet Switch Number of Total Expansion Slots 10 Additional Information - Configurable up to 24,000 unicast routes
- Configurable up to 8,000 multicast routes
- Configurable Maximum Transmission Unit (MTU) of up to 2,000 Bytes for bridging of MPLS tagged frames
- Acoustic Noise:
- ISO 7770, bystander position operating to an ambient temperature of 30 degrees Celsius: 58 dBa
Port/Expansion Slot Details - 2 x Gigabit Ethernet Network
- 10 x Gigabit Ethernet Expansion Slot
Power Source Power Supply Product Line Catalyst NSN Part Number 7.03E+12 SKU UNSPSC 43222612 SKU UPC 7.46E+11 Standard Memory 64 MB Twisted Pair Cable Standard Category 5 Usb Yes - Description
-
Details
2 x 10/100/1000Base-T - Reviews
-
