- Product Specs
-
Additional Information

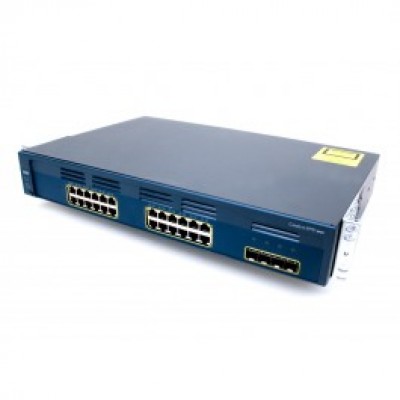

Manufacturer CISCO Manufacturer Part Number WS-C2970G-24T-E SKU GROUP-211515 Ethernet Technology Gigabit Ethernet Flash Memory 16 MB Marketing Information The Cisco Catalyst 2970G-24T Switch is affordable Gigabit Ethernet switch that deliver wire-speed intelligent services for small and medium businesses and enterprise branch offices. Featuring a complete set of intelligent services, the Catalyst 2970G-24T Switch can enhance network performance and increase productivity for todays knowledge workers by intelligently scaling beyond 100 Mbps over existing Category 5 copper cabling. Description 24 x 10/100/1000Base-T Series Cisco Catalyst 2960 Height 1.7" Width 17.5" Depth 12.8" Additional Warranty Information In the event of discontinuance of product manufacture, Cisco warranty support is limited to five (5) years from the announcement of discontinuance. Certifications & Standards - IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.1D: Spanning-Tree Protocol
- IEEE 802.1p: CoS Prioritization
- IEEE 802.1Q: VLAN
- IEEE 802.3: 10BASE-T specification
- IEEE 802.3u: 100BASE-TX specification
- IEEE 802.3ab: 1000BASE-T specification
- IEEE 802.3z: 1000BASE-X specification
- 1000BASE-X: (SFP)
- 1000BASE-SX
- 1000BASE-LX/LH
- 1000BASE-ZX
- RMON I and II standards
- SNMPv1, SNMPv2c, and SNMPv3
- Management Information Base (MIB) Support:
- BRIDGE-MIB (RFC1493)
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO IP-STAT-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB (in and out counters for VLANs are not supported)
- IGMP-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- RFC1213-MIB (per the agent capabilities specified in the CISCO-RFC1213-CAPABILITY.my)
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
- Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
- Telecommunications:
- CLEI code
Form Factor - Rack-mountable
- Wall Mountable
- Desktop
Product Name Catalyst 2970G-24T Ethernet Switch Input Voltage - 110 V AC
- 220 V AC
Layer Supported 4 Limited Warranty Lifetime Manageable Yes Management - CLI
- 4000 VLAN IDs are supported
- TFTP
- DNS
- NTP
- Cisco CMS Software provides an easy-to-use, Web-based management interface through a standard Web browser
- CiscoWorks
- Telnet interface support
Alt Part No WSC2970G24TE MTBF 219108 Hour Network Technology - 10Base-T
- 10/100/1000Base-T
Product Type Ethernet Switch Number of Network (RJ-45) Ports 24 Additional Information - Configurable up to 1000 IGMP groups and bridging entries
- Configurable maximum transmission unit (MTU) of up to 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging on Fast Ethernet ports
- Acoustic Noise: 42 dB
Port/Expansion Slot Details 24 x Gigabit Ethernet Network Power Source Power Supply Product Line Catalyst NSN Part Number 7.03E+12 SKU UNSPSC 43222612 SKU UPC 7.46E+11 Standard Memory 128 MB Total Number of Network Ports 24 Twisted Pair Cable Standard Category 5 - Description
-
Details
24 x 10/100/1000Base-T - Reviews
-
