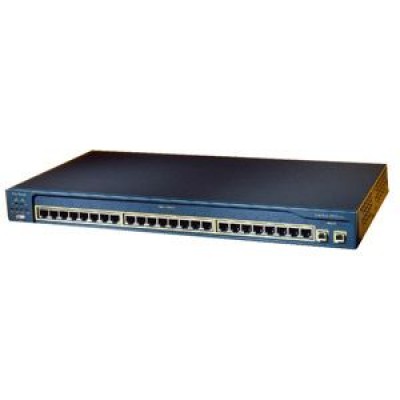

CISCO WS-C2950C-24

MSRP: $52,000.00
SKU :
GROUP-211170
Quick Overview
Product Type: Ethernet Switch
Total Number of Network Ports: 24
Number of MT-RJ Ports: 2
Port/Expansion Slot Details
24 x Fast Ethernet Network
2 x Fast Ethernet Network

In stock

MFR Part # Condition Our Price Qty
WS-C2950C-24 REF
$40.00
WS-C2950C-24 USED
WS-C2950C-24 NEW
Request Quote
OR

100% Secure

100% Money-Back Guarantee

Best Price

Paypal world seller

PRODUCT SPECS

Additional Information

Manufacturer CISCO
Manufacturer Part Number WS-C2950C-24
SKU GROUP-211170
Ethernet Technology Fast Ethernet
Marketing Information Cisco Catalyst 2950C-24 is a member of the Catalyst 2950 Series Intelligent Ethernet Switches, and is a fixed-configuration, stackable switch that provides wire-speed Fast Ethernet connectivity for midsized networks. The Catalyst 2950 Series is an affordable product line that brings intelligent services, such as enhanced security, high availability and advanced quality of service (QoS), to the network edge-while maintaining the simplicity of traditional LAN switching. When a Catalyst 2950 Switch is combined with a Catalyst 3550 Series Switch, the solution can enable IP routing from the edge to the core of the network. Embedded in Catalyst 2950 Series switches is the Cisco Cluster Management Suite (CMS) Software, which allows users to simultaneously configure and troubleshoot multiple Catalyst desktop switches using a standard Web browser. In addition, Cisco CMS Software provides new configuration wizards that greatly simplify the implementation of converged applications and network-wide services.
Description Cisco Catalyst 2950C-24 is a member of the Catalyst 2950 Series Intelligent Ethernet Switches, and is a fixed-configuration, stackable switch that provides wire-speed Fast Ethernet connectivity for midsized networks. The Catalyst 2950 Series is an affordable product line that brings intelligent services, such as enhanced security, high availability and advanced quality of service (QoS), to the network edge-while maintaining the simplicity of traditional LAN switching. When a Catalyst 2950 Switch is combined with a Catalyst 3550 Series Switch, the solution can enable IP routing from the edge to the core of the network. Embedded in Catalyst 2950 Series switches is the Cisco Cluster Management Suite (CMS) Software, which allows users to simultaneously configure and troubleshoot multiple Catalyst desktop switches using a standard Web browser. In addition, Cisco CMS Software provides new configuration wizards that greatly simplify the implementation of converged applications and network-wide services.
Series cisco 2900
Width 17.5"
Depth 9.5"
Brand Cisco
Certifications & Standards
  • Standards:
  • IEEE 802.1x support (planned future software support)
  • IEEE 802.3x full duplex on 10BaseT, 100BaseTX, and 1000BaseT ports
  • IEEE 802.1D Spanning-Tree Protocol
  • IEEE 802.1p CoS
  • IEEE 802.1Q VLAN
  • IEEE 802.3ab 1000BaseT specification
  • IEEE 802.3u 100BaseTX specification
  • IEEE 802.3 10BaseT specification
  • Safety:
  • UL/CSA G0950 Third Edition
  • CSA 22.2 No. 950
  • EN 60950
  • IEC 950
  • AS/NZS 3260, TS001
  • CE Marking
  • Electromagnetic Emissions:
  • FCC Part 15 Class A
  • EN 55022 Class A (CISPR 22 Class A)
  • VCCI Class A
  • AS/NZS 3548 Class A
  • CE Marking
  • CLEI Code
  • BSMI Class A
  • Y2K:
  • Y2K compliant
Expansion Slot Type
  • SFP
  • Stacking Module
Form Factor Rack-mountable
Product Name CISCO WS-C2950C-24
Input Voltage
  • 110 V AC
  • 220 V AC
Limited Warranty Lifetime
Manageable Yes
Management
  • Management:
  • SNMP Management Information Base (MIB) II, SNMP MIB extensions, Bridging MIB (RFC 1493)
  • Superior Manageability:
  • Cisco CMS allows the network administrator to manage up to 16 interconnected Catalyst 2950, 3550-12T, 3500 XL, 2900 XL, and 1900 switches through a single IP address and any standard Web browser, regardless of the location of the switches-that is, the switches do not have to be physically located in the same wiring closet
  • Switch clustering software upgrade allows network administrators to upgrade the system software of up to 16 interconnected switches through the easy-to-use Cisco CMS interface or a single CLI command
  • Simple Network Management Protocol (SNMP), and Telnet interface support delivers comprehensive in-band management, and a CLI-based management console provides detailed out-of-band management
  • Manageable through CiscoWorks Windows network management software on a per-port and per-switch basis providing a common management interface for Cisco routers, switches, and hubs
  • Embedded Remote Monitoring (RMON) software agent supports four RMON groups (History, Statistics, Alarms and Events) for enhanced traffic management, monitoring, and analysis
  • Switch Port Analyzing (SPAN) port monitors traffic of a single port from a single network analyzer or RMON probe
  • Autoconfiguration eases deployment of switches in the network by automatically configuring multiple switches across a network via a boot server
  • Domain Name Services (DNS) provide IP address resolution with user-defined device names
  • Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location
  • Network Time Protocol (NTP) provides an accurate and consistent timestamp to all switches within the intranet
  • Spanning Tree Root Guard (STRG) prevents edge devices that are not in the network administrator's control from becoming STP root nodes
  • Multi-function LEDs per port for Port Status, half-duplex/full-duplex, 10BaseT/100BaseTX/1000BaseT indication as well as switch-level status LEDs for system, RPS, and bandwidth utilization provide a comprehensive and convenient visual management system
Alt Part No WSC2950C24
Network Technology
  • 10Base-T
  • 100Base-TX
  • 100Base-FX10/100Base-TX
Product Type Ethernet Switch
Number of Network (RJ-45) Ports 24
Additional Information
  • 250-port-based VLANS
  • Cisco RPS Connector:
  • Connection for an optional Cisco RPS 300 that uses AC input and supplies DC output to the switch
  • 300-watt redundant power system that can support six external network devices and provides power to one failed device at a time
  • Automatically senses when the internal power supply of a connected device fails and provides power to the failed device, preventing loss of network traffic
  • When internal power supply has been brought up or replaced, the RPS 300 automatically stops powering the device
  • Attach only the Cisco RPS 300 (model PWR300-AC-RPS-N1) to the RPS receptacle
  • Fiber-port Specifications:
  • Optical Transmitter Wavelength: 1300 nm (nanometers)
  • Optical receiver sensibility: -14dBm (decibel milliwatt)
  • Optical transmitter power: -19dBm to -14 dBm
  • Transmit: -19 dBm to -14dBm
Port/Expansion Slot Details
  • 24 x Fast Ethernet Network
  • 2 x Fast Ethernet Network
  • Power Source Power Supply
    Redundant Power Supply Yes
    NSN Part Number 5.90E+12
    SKU UNSPSC 43222612
    SKU UPC 7.46E+11
    Total Number of Network Ports 24
    Description

    Details

    Cisco Catalyst 2950C-24 is a member of the Catalyst 2950 Series Intelligent Ethernet Switches, and is a fixed-configuration, stackable switch that provides wire-speed Fast Ethernet connectivity for midsized networks. The Catalyst 2950 Series is an affordable product line that brings intelligent services, such as enhanced security, high availability and advanced quality of service (QoS), to the network edge-while maintaining the simplicity of traditional LAN switching. When a Catalyst 2950 Switch is combined with a Catalyst 3550 Series Switch, the solution can enable IP routing from the edge to the core of the network. Embedded in Catalyst 2950 Series switches is the Cisco Cluster Management Suite (CMS) Software, which allows users to simultaneously configure and troubleshoot multiple Catalyst desktop switches using a standard Web browser. In addition, Cisco CMS Software provides new configuration wizards that greatly simplify the implementation of converged applications and network-wide services.
