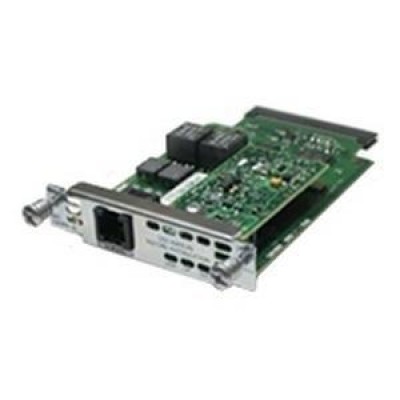

Manufacturer CISCO Manufacturer Part Number WIC-1SHDSL V2 SKU GROUP-210442 Marketing Information The WIC-1SHDSL-V2 interface card is the next generation one-port G.SHDSL. It supports all G.SHDSL features, plus supplies two twisted pairs of wires to implement 4-wire G.SHDSL. 4-wire G.SHDSL supports sending a power failure message (dying gasp) to the central office (CO), and supports wetting current. When it is enabled, 4-wire G.SHDSL provides a higher symmetrical bandwidth and longer reach. Description 1 x G.SHDSL Series cisco 1700 Application/Usage Wide Area Network Compatibility - 2-wire ATM:
- Cisco 1721
- Cisco 1751
- Cisco 1760
- Cisco 26xxXM
- Cisco 2691
- Cisco 37xx
- Cisco 3631
- 2-wire T1/E1 in back-to-back configurations:
- Cisco 1721
- Cisco 1751
- Cisco 1760
- Cisco 26xxXM
- 4-wire ATM:
- Cisco 1721
- Cisco 1751
- Cisco 1760
- Cisco 26xxXM
- Cisco 2691
- Cisco 37xx
- Cisco 3631
Product Name WAN Interface Card (WIC) Interfaces/Ports Details 1 x RJ-14C G.SHDSL WAN Limited Warranty 90 Alt Part No WIC1SHDSLV2 Product Type WAN Interface Card (WIC) Additional Information - RJ- 14C Pinouts:
- Line-0:
- Pins(3 and 4), Signal (3 = Tip, 4 = Ring)
- Line-1:
- Pins(2 and 5), Signal (2 = Tip, 5 = Ring)
- RJ- 11 Pinouts:
- Line-0:
- Pins(2 and 3), Signal (2 = Tip, 3 = Ring)
- Line-1:
- Pins(1 and 4), Signal (1 = Tip, 4 = Ring)
Shipping Weight (Approximate) 1.23 lb NSN Part Number 6.00E+12 SKU UNSPSC 43222600 SKU UPC 7.46E+11 - Description
-
Details
1 x G.SHDSL - Reviews
-
