- Product Specs
-
Additional Information

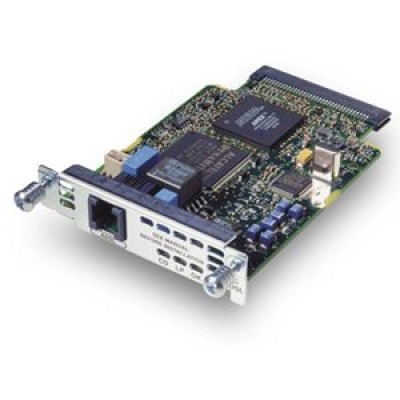

Manufacturer CISCO Manufacturer Part Number WIC-1ADSL SKU GROUP-210334 Marketing Information This ADSL WAN interface card (WIC) on the Cisco 1700/2600/3700 series routers deliver business class ADSL over basic telephone service or otherwise known as Plain Old Telephone Service (POTS) (through WIC-1ADSL ADSL) services for small and medium-sized businesses to enterprise branch offices Description 1 x ADSLoPOTS Series cisco 1700 Application/Usage Wide Area Network Height 0.8" Width 3.1" Depth 4.4" Compatibility - Supported Platforms:
- Cisco 1720
- Cisco 1721
- Cisco 1751
- Cisco 1760
- Cisco 2610-51
- Cisco 2610-51XM
- Cisco 2691
- Cisco 3620
- Cisco 3640
- Cisco 3640A
- Cisco 3660
- Cisco 3725
- Cisco 3745
Product Name WAN Interface Card (WIC) Interfaces/Ports Details 1 x RJ-11 ADSLoPOTS WAN Limited Warranty 90 Maximum Data Transfer Rate 864 kbit/s Alt Part No WIC1ADSL Network Technology ADSLoPOTS Product Type WAN Interface Card (WIC) Additional Information - Key Features:
- Supports ADSL over POTS with Annex A ITU 992.1 (G.dmt)
- Complies with ANSI T1.413 issue 2
- Supports ATM AAL5
- Supports ATM Class of Service features CBR, VBR-nrt, VBR-rt, UBR
- Supports IP QoS
- Supports up to 23 virtual circuits on WIC
- Interoperates with third party and Cisco DSLAMs
- Applications of Cisco ADSL WICs:
- Business-Class DSL with WAN Backup
- Business Class Security
- IP and ATM Quality of Service
- Application-Aware Networking with IP QoS
- Traffic Management Using ATM CoS
- DSLAM Interoperability:
- Alcatel ASAM 1000 and 7300
- Cisco 6000 Series DSLAMs
- Lucent Stinger (24-port and 48-port linecards)
- ECI HiFOCuS (ADI 918 and ADI 930 linecards)
- Cable Information:
- The straight-through cable is the default cable and is included in the WIC packaging. For customers that have an external splitter, please order the crossover cable. This crossover cable can be ordered as a spare with the product id: CAB-ADSL-RJ11X=
- ADSL Chipset Specifications:
- WIC-1ADSL (ADSLoPOTS) - Alcatel MTK-20150
NSN Part Number 5.90E+12 SKU UNSPSC 43222600 SKU UPC 7.46E+11 Twisted Pair Cable Standard - Category 3
- Category 4
- Category 5
- Description
-
Details
1 x ADSLoPOTS - Reviews
-
