- Product Specs
-
Additional Information

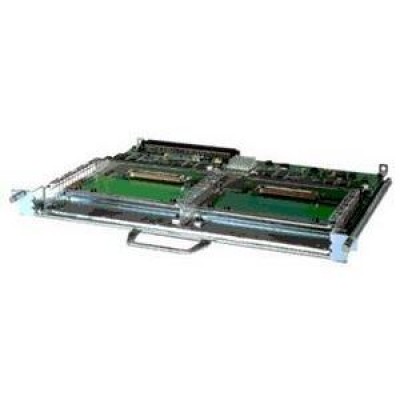

Manufacturer CISCO Manufacturer Part Number VIP6-80 SKU GROUP-209497 Marketing Information The Cisco Versatile Interface Processor 6-80 Services Accelerator (VIP6-80) is the newest and highest-performance versatile interface processor for the Cisco 7500 Series Router. The Cisco VIP6-80 provides up to a 40 percent improvement over the Cisco VIP4 and a more than 100 percent improvement over the Cisco VIP2-50 when distributed features and quality-of-service (QoS) services are enabled on an interface. As such, the Cisco VIP6-80 is ideal for enterprise and service provider customers who require high-performance, high-speed interfaces and applications. Description Cisco Versatile Interface Processor 6-80 - Versatile Interface P Application/Usage Data Networking Compatibility - Cisco 7505, 7507, 7507-MX, 7513, 7513-MX
- Cisco RSP2, RSP4, RSP4+, RSP8, or RSP16
- Backward compatibility with all existing Cisco VIP 4-supported port adapters
Product Name Versatile Interface Processor 6-80 Limited Warranty 90 Alt Part No VIP680 Product Type Versatile Interface Processor Additional Information - Item Included:
- Port Adapter Blank Carrier (MAS-PA-BLANK)
- 64 MB SDRAM Option for VIP6 (Default) (MEM-VIP6-64M-SD)
- Single Line Card Reload (SLCR)
- ECC protected memory (single/double bit error detection)
- The VIP6-80 occupies one chassis slot and can only be operated in Cisco 7500 series or Cisco 7000 series routers using the 7000 Series Route Switch Processor (RSP7000) and 7000 Series Chassis Interface (RSP7000CI)
- Port Adapters Supported by the VIP6-80:
- PA-A3-T3
- PA-A3-E3
- PA-A3-8T1IMA
- PA-A3-8E1IMA
- PA-A3-OC3MM
- PA-A3-OC3SMI
- PA-A3-OC3SML
- PA-A3-OC12-MM
- PA-A3-OC12-SMI
- PA-POS-OC3-MM
- PA-POS-OC3-SMI
- PA-POS-OC3-SML
- PA-FE-TX
- PA-FE-FX
- PA-2FE-TX
- PA-2FE-FX
- PA-4E
- PA-8E
- PA-F-MM
- PA-F-SM
- PA-FD-MM
- PA-FD-SM
- PA-4T+
- PA-8T-V35
- PA-8T-232
- PA-8T-X21
- PA-T3/PA-T3+
- PA-2T3/ PA-2T3+
- PA-E3
- PA-2E3
- PA-4E1G/75
- PA-4E1G/120
- PA-MC-T3
- PA-MC-E3
- PA-MC-2T1
- PA-MC-4T1
- PA-MC-8T1
- PA-MC-2T3+
- PA-MC-8DSX1
- PA-MC-2E1/120
- PA-MC-8E1/120
- PA-MC-STM-1MM
- PA-MC-STM-1SMI
- PA-H
- PA-2H
- PA-SRP-OC12MM
- PA-SRP-OC12SMI
- PA-SRP-OC12SML
- PA-SRP-OC12SMX
- Interface Processors Supported by the VIP6-80:
- GEIP
- GEIP+
Processor Speed 400 MHz Shipping Weight (Approximate) 5 lb NSN Part Number 6.00E+12 SKU UNSPSC 43222600 SKU UPC 7.46E+11 - Description
-
