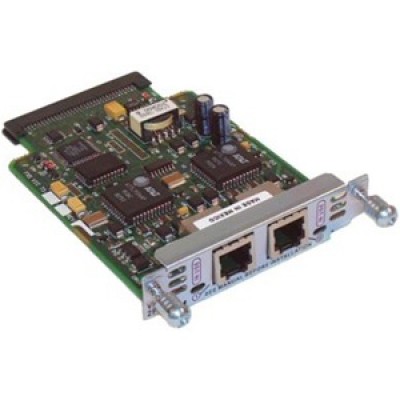

Manufacturer CISCO Manufacturer Part Number VIC-2FXS SKU GROUP-209422 Marketing Information The two-port FXS voice/fax interface card for Cisco voice/fax network modules is used to connect directly to phones and fax machines. This voice interface card works with existing phone and fax equipment to provide voice and fax services over IP, and is compatible with H.323 standard for audio- and videoconferencing. Description 2 x FXS Series voice interface cards Application/Usage Voice Compatibility - NM-1V
- NM-2V
- Supported Platforms & Minimum IOS Versions:
- 3745 - 12.2(8)T
- 3725 - 12.2(8)T
- 3660 series - 12.0(5)T
- 3640 - 11.3(1)T
- 3620 - 11.3(1)T
- 2691 - 12.2(8)T1
- 2650 - 12.1(3)T
- 2600XM Series - 12.2(8)T1
- 2600 series - 11.3(1)T
- 1720 - Not Available
- 1600 series - Not Available
Product Name FXS Voice Interface Card (VIC) Interfaces/Ports Details 2 x RJ-11 FXS Limited Warranty 90 Alt Part No VIC2FXS Product Type Voice Interface Card (VIC) Additional Information - Modular Router Solutions:
- Voice & Fax Integration
- VPN & Firewall Solutions
- Interface Type:
- Foreign exchange station
- Address Signaling Formats:
- In-band DTMF
- Out-of-band pulse (10/20 pps)
- Signaling Formats: Loop start, ground start
- Ringing Tone: Configurable for different country requirements
- Ringing Voltage: < 45 Vrms at 5 REN at 25 Hz (configurable frequency)
- Ringing Frequencies: 20 Hz, 50 Hz
- Application:
- Use to connect directly to phones, fax machines, and key systems (generates battery polarity reversal with IOS Plus 12.1.2T and later and generates Caller ID using IOS Plus 12.1.3T or later)
NSN Part Number 6.00E+12 SKU UNSPSC 43222600 SKU UPC 7.46E+11 - Description
-
