- Product Specs
-
Additional Information

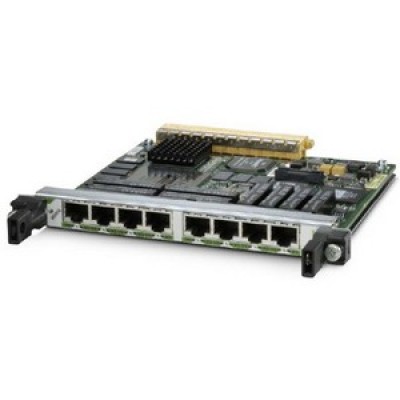

Manufacturer CISCO Manufacturer Part Number SPA-8XCHT1/E1 SKU GROUP-201401 Ethernet Technology Gigabit Ethernet Marketing Information The Cisco 8-Port Channelized T1/E1 Shared Port Adapter is designed to provide a full 8-port channelized solution for the Cisco 7600 Series routers. The interfaces can be channelized, fractional, or unframed (E1) with up to 256 independent High-Level Data Link Control (HDLC) channels definable for T1 and E1 applications. With these capabilities, It eliminates the need for separate interface types for separate connection requirements.
Description Cisco I-Flex combines shared port adapters (SPAs) and SPA interface processors (SIPs), leveraging an extensible design that enables service prioritization for voice, video and data services for intelligent, flexible and secure networking. Application/Usage Data Networking Height 0.8" Width 6.8" Brand Cisco Compatibility - Cisco 7600 Series routers
- Cisco 12000 Series routers
- Cisco XR 12000 Series routers
Form Factor Hot-swappable Product Name CISCO SPA-8XCHT1/E1 Input Voltage - 110 V AC
- 220 V AC
Interfaces/Ports Details 8 x RJ-45 T1/E1 Limited Warranty 90 Manageable Yes Management Port Yes Maximum Data Transfer Rate 1.98 Mbit/s Media Type Twisted Pair Memory Card Supported CompactFlash Alt Part No SPA8XCHT1E1 Product Type Shared Port Adapter Additional Information - Spare Product
- Power 9.4W maximum
- Physical Interface: RJ-45 to BNC adapter cable option
- Up to 8 independent T1 or E1 ports configurable as either all T1 or all E1 only
- Channelized and fractional T1/E1, clear channel E1 supported
- Internal or network clocking selectable on each port
- Loopback capabilities
Power Source Power Supply NSN Part Number 7.03E+12 SKU UNSPSC 43222600 SKU UPC 7.46E+11 Usb Yes - Description
-
Details
Cisco I-Flex combines shared port adapters (SPAs) and SPA interface processors (SIPs), leveraging an extensible design that enables service prioritization for voice, video and data services for intelligent, flexible and secure networking. - Reviews
-
