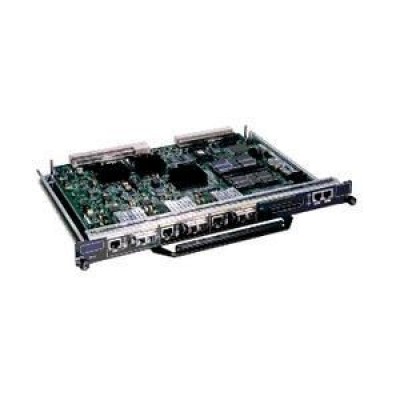

CISCO NPE-G1

MSRP: $15,000.00
SKU :
GROUP-153541
Quick Overview
3 x 10/100/1000Base-T - 3 x GBIC , 1 x PC Card

In stock

MFR Part # Condition Our Price Qty
NPE-G1 REF
$110.00
NPE-G1 USED
NPE-G1 NEW
$685.00
Request Quote
OR

100% Secure

100% Money-Back Guarantee

Best Price

Paypal world seller

PRODUCT SPECS

Additional Information

Manufacturer CISCO
Manufacturer Part Number NPE-G1
SKU GROUP-153541
Ethernet Technology Gigabit Ethernet
Marketing Information

To continue to meet the increasing needs for performance while maintaining exceptional value and flexibility, the Cisco 7200 Series introduces its newest processor - the NPE-G1. The Cisco 7200 Series Network Processing Engine NPE-G1 (NPE-G1) addresses the demand for performance and flexibility by doubling its processing capacity and enabling unprecedented LAN performance.

Description To continue to meet the increasing needs for performance while maintaining exceptional value and flexibility, the Cisco 7200 Series introduces its newest processor - the NPE-G1. The Cisco 7200 Series Network Processing Engine NPE-G1 (NPE-G1) addresses the demand for performance and flexibility by doubling its processing capacity and enabling unprecedented LAN performance.
Series 7200 network processing
Application/Usage Wide Area Network
Height 1.4"
Width 15.2"
Depth 11.1"
Brand Cisco
Compatibility
    The NPE-G1 is supported on the Cisco 7204VXR and Cisco 7206VXR chassis
Expansion Slot Type GBIC
Product Name CISCO NPE-G1
Input Voltage
  • 110 V AC
  • 220 V AC
Interfaces/Ports Details
  • 3 x RJ-45 10/100/1000Base-T LAN
  • 1 x RJ-45 Console Management
  • 1 x RJ-45 Auxiliary Management
Limited Warranty 90
Maximum Data Transfer Rate 100 Mbit/s
Media Type Twisted Pair
Alt Part No NPEG1
Network Technology 10/100/1000Base-T
Product Type Network Processing Engine
Number of Total Expansion Slots 4
Additional Information
  • Item Included:
  • Two 128MB mem modules (256MB total) for NPE-G1 in 7200 (MEM-NPE-G1-256MB)
  • Cisco 7200 Compact Flash Disk for NPE-G1, 64 MB Option (MEM-NPE-G1-FLD64)
  • Provides performance of up to 1 million packets per second (PPS) in Cisco Express Forwarding (CEF) switching (an increase of up to 250 percent over the Cisco 7200 Series Network Processing Engine NPE-400)
  • Offers three Gigabit Ethernet/Fast Ethernet ports that do not take up bandwidth points
  • Doubles the amount of available DRAM (to 1 GB)
  • Eliminates the requirement for an input/output (I/O) controller
  • Incorporates the functionality (flash memory and auxiliary and console ports) of the I/O controller
  • Eliminates I/O controller LAN interface bandwidth points
  • Provides modular processors and the ability to upgrade
  • Offers improved price performance
  • Two environmental sensors for monitoring the cooling air as it enters and leaves the chassis
  • Full-feature I/O controller functionality
  • Only one port per interface can be used at any one time. For example, for interface Gigabit Ethernet 0/1, either the RJ-45 port can be used or the GBIC port, but not both
  • A total of three ports on any of the three interfaces (0/1, 0/2, or 0/3) can be used at any one time; for example, 0/1 GBIC, 0/2 GBIC, and 0/3 RJ-45
  • There are two DRAM memory slots, so 256 MB of memory consists of two 128 MB memory SODIMMs, 512 MB consists of two 256 MB memory SODIMMs, and 1 GB consists of two 512 MB memory SODIMMs. It is necessary to have the same size SODIMM in each memory bank on an NPE-G1
  • Cisco 7200VXR chassis with an NPE-G1 does not require the use of an I/O controller, an I/O controller can still be used
  • The NPE-G1 is supported with the following Cisco 7200 Series I/O controller part numbers:
  • C7200-I/O
  • C7200-I/O-2FE/E
  • C7200-I/O-GE+E
  • The NPE-G1 is supported with all port adapters that can be ordered with the Cisco 7200VXR chassis as of August 1, 2002 except for the following:
  • PA-4C-E
  • PA-A2-4T1C-OC3SM
  • PA-A2-4T1C-T3ATM
  • PA-A2-4E1XC-OC3SM
  • PA-A2-4E1XC-E3ATM
  • PA-MCX-2TE1
  • PA-MCX-4TE1
  • PA-MCX-8TE1
  • PA-SRP-OC12MM
  • PA-SRP-OC12SMI
  • PA-SRP-OC12SML
  • PA-SRP-OC12SMX
  • PA-MC-STM-1MM
  • PA-VXA-1TE1-24+
  • PA-VXA-1TE1-30+
  • PA-VXB-2TE1+
  • PA-VXC-2TE1+
Power Source Power Supply
Processor Manufacturer Broadcom
Processor Speed 700 MHz
Shipping Weight (Approximate) 9.42
NSN Part Number 7.03E+12
SKU UNSPSC 43222600
SKU UPC 7.46E+11
Description

Details

To continue to meet the increasing needs for performance while maintaining exceptional value and flexibility, the Cisco 7200 Series introduces its newest processor - the NPE-G1. The Cisco 7200 Series Network Processing Engine NPE-G1 (NPE-G1) addresses the demand for performance and flexibility by doubling its processing capacity and enabling unprecedented LAN performance.
