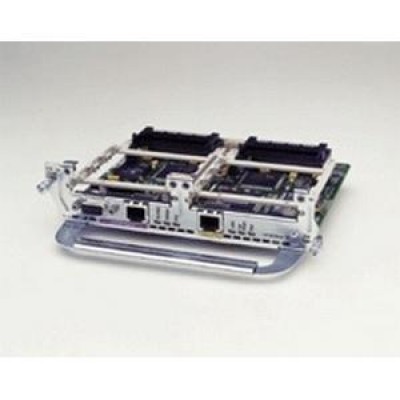

Manufacturer CISCO Manufacturer Part Number NM-1FE1R2W SKU GROUP-126987 Ethernet Technology Fast Ethernet Marketing Information This mixed-media network module has one full/half duplex, auto-sensing 10/100 Ethernet port, one full/half duplex 4/16 token ring port, and 2 WAN Interface Card (WIC) expansion slots, supporting all current WICs and VWICs. Description 10/100 TOKEN RING, 2 WAN Application/Usage Data Networking Height 1.6" Width 7.1" Depth 7.2" Compatibility Supported Platforms & Minimum IOS Versions:
3745 - 12.2(8)T
3725 - 12.2(8)T
3660 series - 12.0(7)XK
3640 - 12.0(7)XK
3620 - 12.0(7)XK
2691 - 12.2(8)T1
2650 - Not Available
2600XM Series - Not Available
2600 series - Not Available
1720 - Not Available
1600 series - Not Available
Network interfaces:
Compatible with all existing network modules and WICS supported by Cisco 2600/3600 family
Not Supported:
WIC36-1B-S/T
WIC36-1B-U
WIC-1B-S/T-LL
WIC-1ENETExpansion Slot Type WIC
VWICProduct Name CISCO NM-1FE1R2W Interfaces/Ports Details 1 x RJ-45 10/100Base-TX LAN
1 x RJ-45 Token Ring LAN
1 x DB-9 Token Ring LANMaximum Data Transfer Rate 100 Media Type Twisted Pair Alt Part No NM1FE1R2W Network Technology Token Ring
10/100Base-TXProduct Type Network Module Number of Total Expansion Slots 2 Additional Information Token Ring RJ-45 and DB-9 connector (only one may be used at a time)
Supports 8 Mbps aggregate across 4 ports. Support for speeds above 4 Mbps must use WIC-2T.
WICs are not hot swappable. The network modules support hot swap in the Cisco 3660.
Modular Router Solutions:
LAN-to-LAN Routing
VPN & Firewall Solutions
DSL Access
Dialup Remote Access
ISDN Concentration
Serial & Legacy Concentration
Voice & Fax Integration
Protocols supported:
Full Cisco IOS software as of 12.0(7)XK
WIC Performance:
Up to 8Mb/s per WIC (with just 1 WIC installed)
Comments:
No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules. Will only operate in 3600 series routers.NSN Part Number 5.99802E+12 SKU UNSPSC 43222600 - Description
-
