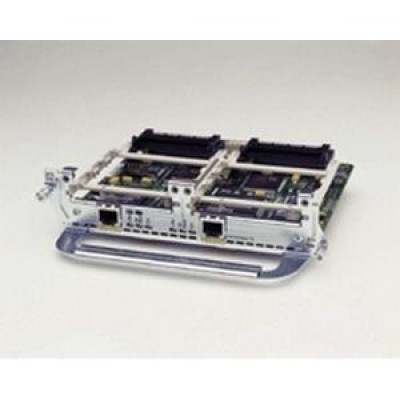

CISCO NM-2FE2W

MSRP: $0.00
SKU :
GROUP-152804
Quick Overview
2 x 10/100Base-TX - 2 x WIC/VWIC

In stock

MFR Part # Condition Our Price Qty
NM-2FE2W NEW
NM-2FE2W REF
$70.00
NM-2FE2W USED
Request Quote
OR

100% Secure

100% Money-Back Guarantee

Best Price

Paypal world seller

PRODUCT SPECS

Additional Information

Manufacturer CISCO
Manufacturer Part Number NM-2FE2W
SKU GROUP-152804
Ethernet Technology Fast Ethernet
Marketing Information This mixed-media network module has two full/half duplex, auto-sensing 10/100 Ethernet port and 2 WAN Interface Card (WIC) expansion slots, supporting all current WICs and VWICs. The 10/100 Ethernet connections are via RJ-45 connectors.
Description This mixed-media network module has two full/half duplex, auto-sensing 10/100 Ethernet port and 2 WAN Interface Card (WIC) expansion slots, supporting all current WICs and VWICs. The 10/100 Ethernet connections are via RJ-45 connectors.
Module Type EM Network Modules
Application/Usage Data Networking
Height 1.6"
Width 7.1"
Depth 7.2"
Brand Cisco
Compatibility
  • Supported Platforms & Minimum IOS Versions:
  • 3745 - 12.2(8)T
  • 3725 - 12.2(8)T
  • 3660 series - 12.0(7)XK
  • 3640 - 12.0(7)XK
  • 3620 - 12.0(7)XK
  • 2691 - 12.2(8)T1
  • 2650 - Not Available
  • 2600XM Series - Not Available
  • 2600 series - Not Available
  • 1720 - Not Available
  • 1600 series - Not Available
  • Network interfaces:
  • - Compatible with all existing network modules and WICs supported by Cisco 2600/3600 family
  • Not supported:
  • WIC36-1B-S/T
  • WIC36-1B-U
  • WIC-1B-S/T-LL
  • WIC-1ENET
Expansion Slot Type
  • WIC
  • VWIC
Product Name CISCO NM-2FE2W
Input Voltage
  • 110 V AC
  • 220 V AC
Interfaces/Ports Details 2 x RJ-45 10/100Base-TX Auto-sensing LAN
Limited Warranty 90
Maximum Data Transfer Rate 100 Mbit/s
Media Type Twisted Pair
Alt Part No NM2FE2W
Network Technology 10/100Base-TX
Product Type Network Module
Number of Total Expansion Slots 2
Additional Information
  • Modular Router Solutions:
  • LAN-to-LAN Routing
  • VPN & Firewall Solutions
  • DSL Access
  • Dialup Remote Access
  • ISDN Concentration
  • Serial & Legacy Concentration
  • The Maximum Number of NMs that can be utilized in each of the 2600/3600 families is as follows:
  • 2691: 1
  • 3620: 2
  • 3640: 4
  • 3660: 6
  • 3725: 2
  • 3745: 4
  • Protocols supported:
  • Full Cisco IOS software as of 12.0(7)XK
  • WIC Performance:
  • Up to 8Mb/s per WIC (with just 1 WIC installed)
  • Uses the same Fast Ethernet controller as all other Cisco 2600/3600 Fast Ethernet ports
  • WICs are not hot swappable. The network modules support hot swap in the Cisco 3660.
  • Supports a maximum of two channel groups per VWIC
  • Does not support ISDN PRI
  • Does not support Fast EtherChannel
  • Comments:
  • No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules. Will only operate in 3600 series routers.
Shipping Weight (Approximate) 1.90 lb
NSN Part Number 7.03E+12
SKU UNSPSC 43222600
SKU UPC 7.46E+11
Description

Details

This mixed-media network module has two full/half duplex, auto-sensing 10/100 Ethernet port and 2 WAN Interface Card (WIC) expansion slots, supporting all current WICs and VWICs. The 10/100 Ethernet connections are via RJ-45 connectors.
