- Product Specs
-
Additional Information

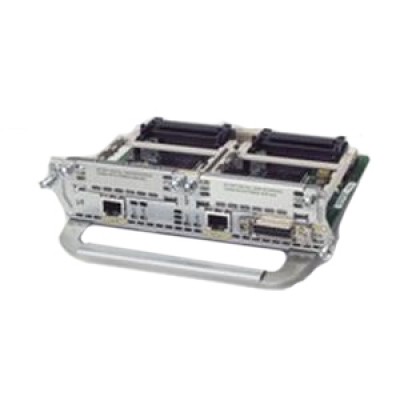

Manufacturer CISCO Manufacturer Part Number NM-2E2W SKU GROUP-152798 Ethernet Technology Ethernet Marketing Information This mixed-media network module has two Ethernet ports and two user-configurable WAN Interface Card (WIC) expansion slots. One Ethernet connection is via an Ethernet AUI DB-15 connector or 10BaseT RJ-45 connector. The second Ethernet connection is via an RJ-45 connector. The supported WICs include the 1-port serial (WIC-1T), 1-port ISDN BRI with ST and U interfaces (WIC-1B-S/T, WIC-1B-U), 1-port 56 kbps DSU/CSU (WIC-1DSU-56K4), and 1-port T1/FT1 DSU/CSU (WIC-1DSU-T1). Description 2 x WAN Interface Card (WIC) Module Type EM Network Modules Application/Usage Data Networking Compatibility - Supported Platforms & Minimum IOS Versions:
- 3745 - Not Available
- 3725 - Not Available
- 3660 series - 12.0(5)T
- 3640 - 11.1(7)AA
- 3620 - 11.1(7)AA
- 2691 - Not Available
- 2650 - Not Available
- 2600XM Series - Not Available
- 2600 series - Not Available
- 1720 - Not Available
- 1600 series - Not Available
- Not supported:
- VWIC-2MFT-T1
Expansion Slot Type WAN Interface Card (WIC) Product Name Network Module Interfaces/Ports Details - 1 x DB-15/RJ-45 10Base-T (AUI) Auto-sensing LAN
- 1 x RJ-45 10Base-T LAN
Limited Warranty 90 Maximum Data Transfer Rate 10 Mbit/s Alt Part No NM2E2W Network Technology 10Base-T Product Type Network Module Number of Total Expansion Slots 2 Additional Information - Modular Router Solutions:
- LAN-to-LAN Routing
- DSL Access
- Dialup Remote Access
- ISDN Concentration
- Serial & Legacy Concentration
- Voice & Fax Integration
- Ethernet 0 has both 10 Base-T and AUI connectors
- The VWIC-2MFT-T1-DI is supported, but with one serial channel group
- Supports half-duplex in all Cisco IOS versions
- Supports full-duplex beginning with Cisco IOS version 12.0(4)T
- WIC cards are not hot-swappable, but no hardware damage will occur if they are hot-swapped
- Physical Limitation of Serial Modules per Chassis:
- Cisco 3660: 6
- Cisco 3640: 4
- Cisco 3620: 2
- Comments:
- No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules
Shipping Weight (Approximate) 1.72 lb NSN Part Number 6.00E+12 SKU UNSPSC 43222600 - Description
-
