- Product Specs
-
Additional Information

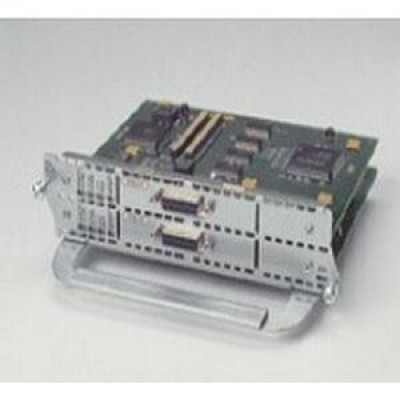

Manufacturer CISCO Manufacturer Part Number NM-2CT1-CSU SKU GROUP-152791 Marketing Information The 2-port channelized T1/ISDN-PRI network module supports two channelized T1/ISDN PRI with integrated DSU/CSU connections via RJ-48 connectors. Description 2 x Channelized T1/ISDN PRI Module Type EM Network Modules Application/Usage Data Networking Compatibility - Supported Platforms:
- 3745
- 3725
- 3660 series
- 3640
- 3620
- 2691
- 2600XM series
- 2600 series
- 3631
Product Name Channelized T1/ISDN-PRI with CSU Network Module Interfaces/Ports Details 2 x RJ-48 Channelized T1/ISDN PRI WAN Limited Warranty 90 Maximum Data Transfer Rate 1.54 Mbit/s Alt Part No NM2CT1CSU Product Type Network Module Additional Information - ISDN Concentration
- LAN-to-LAN Routing
- Serial & Legacy Concentration
- VPN & Firewall Solutions
- Each port is configured independently. You can configure one port for ISDN PRI and the other for channelized T1.
- For reliable operation, a 3 dB margin is recommended
- Integrated DSU/CSU connections
- Receiver sensitivity:
- 26 dB or 36 dB, selected by the cablelength command
Shipping Weight (Approximate) 2.24 lb SKU UNSPSC 43222600 SKU UPC 7.46E+11 - Description
-
Details
2 x Channelized T1/ISDN PRI - Reviews
-
