- Product Specs
-
Additional Information

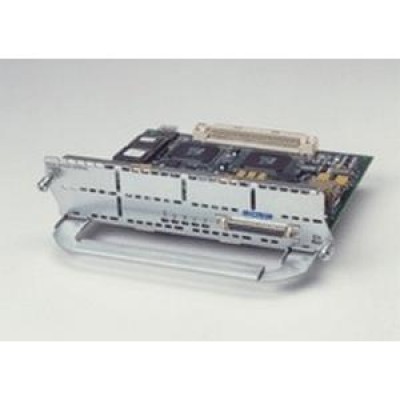

Manufacturer CISCO Manufacturer Part Number NM-1HSSI SKU GROUP-152754 Marketing Information - The NM-1HSSI is a single port, high-speed network module that provides connectivity to a Wide Area Network. Demand for high capacity corporate backbonds, high-speed Internet access, Virtual Private Networks (VPNs), and trunking connections for service provider internetworking has led to an increase demand for clear channel DS3 and E3 connections
- The NM-1HSSI Network Module supports speeds up to 52 Mbps on a Cisco 3640 and Cisco 3620. The Cisco 3640 is capable of supporting up to three NM-1HSSI in a single chassis with the restriction that the maximum bi-directional throughput of the Cisco 3640 is 45 Mbps. The Cisco 3620 supports only one NM-1HSSI network module. The NM-1HSSI also supports fractional T3/E3 speeds from 56 kbps to 52 Mbps.
Description 1 x HSSI Module Type EM Network Modules Application/Usage Data Networking Height 1.6" Width 7.1" Depth 7.2" Compatibility - Supported Platforms & Minimum IOS Versions:
- 3745 - 12.2(8)T
- 3725 - 12.2(8)T
- 3660 series - 12.0(5)T
- 3640 - 11.3(3)T
- 3620 - 11.3(3)T
- 2691 - 12.2(8)T1
- 2650 - Not Available
- 2600XM Series - Not Available
- 2600 series - Not Available
- 1720 - Not Available
- 1600 series - Not Available
Product Name Network Module Interfaces/Ports Details 1 x 50-pin SCSI-2 HSSI WAN Maximum Data Transfer Rate 52 Alt Part No NM1HSSI Product Type Network Module Additional Information - Modular Router Solutions:
- LAN-to-LAN Routing
- Serial & Legacy Concentration
- VPN & Firewall Solutions
- Physical Limitation of Serial Modules per Chassis:
- Cisco 3640: 3
- Cisco 3620: 1
- Protocols Supported:
- Full Cisco IOS support by release 11.2 and 11.3
- Supported Features of Serial Network Modules:
- Synchronous
- Full Duplex
- Comments:
- No reliance on other network modules, WAN interface cards, voice interface cards, or advanced integration modules
SKU UNSPSC 43222600 - Description
-
Details
1 x HSSI - Reviews
-
