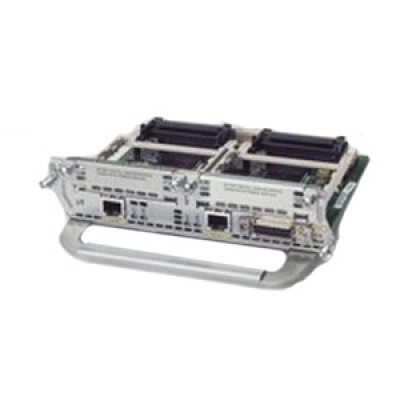

cisco nm-1e2w

MFR Part #	Condition	Our Price
NM-1E2W	NEW
NM-1E2W	REF

Additional Information

Manufacturer	CISCO
Manufacturer Part Number	NM-1E2W
SKU	GROUP-152665
Ethernet Technology	Ethernet
Marketing Information	This mixed-media network module has one Ethernet port and two user-configurable WAN Interface Card (WIC) expansion slots. The Ethernet connection is via an Ethernet AUI DB-15 connector or 10BaseT RJ-45 connector. The supported WICs include the 1-port serial (WIC-1T), 1-port ISDN BRI with ST and U interfaces (WIC-1B-S/T, WIC-1B-U), 1-port 56 kbps DSU/CSU (WIC-1DSU-56K4), and 1-port T1/FT1 DSU/CSU (WIC-1DSU-T1).
Description	1 x 10Base-T (AUI) - 2 x WAN Interface Card (WIC)
Module Type	EM Network Modules
Application/Usage	Data Networking
Height	1.6"
Width	7.1"
Depth	7.2"
Compatibility	Supported Platforms & Minimum IOS Versions: 3745 - Not Available 3725 - Not Available 3660 series - 12.0(5)T 3640 - 11.1(7)AA 3620 - 11.1(7)AA 2691 - Not Available 2650 - Not Available 2600XM Series - Not Available 2600 series - Not Available 1720 - Not Available 1600 series - Not Available
Expansion Slot Type	WAN Interface Card (WIC)
Product Name	Network Module
Interfaces/Ports Details	1 x DB-15/RJ-45 10Base-T (AUI) LAN
Limited Warranty	90
Maximum Data Transfer Rate	10 Mbit/s
Alt Part No	NM1E2W
Network Technology	10Base-T
Product Type	Network Module
Number of Total Expansion Slots	2
NSN Part Number	6.00E+12
SKU UNSPSC	43222600
SKU UPC	7.46E+11
