- Product Specs
-
Additional Information

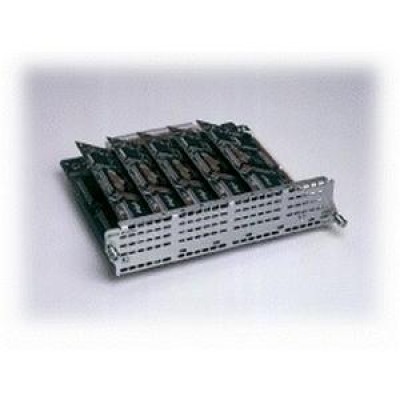

Manufacturer CISCO Manufacturer Part Number NM-12DM SKU GROUP-152528 Marketing Information The 12-port digital modem network module contains twelve configurable V.90 compliant digital modems for use with the ISDN PRI and BRI network modules. This module is field upgradable to a maximum of 30 digital modems. Description The new Cisco Integrated V.92 analog modem network module provides cost-effective analog telephone service connectivity for lower-density remote-access service (RAS), dial-out and fax-out modem access, asynchronous dial-on-demand routing (DDR) plus dial backup, and remote router management. Combined with the differentiated services delivered through Cisco IOS Software, Cisco 2600 Series, 3660, and 3700 series routers offer customers best-in-class scalability, flexibility, and investment protection, all in cost-effective, multifunctional platforms. Module Type EM Network Modules Application/Usage Data Networking Brand Cisco Compatibility - Supported Platforms & Minimum IOS Versions:
- 3745 - 12.2(8)T
- 3725 - 12.2(8)T
- 3660 series - 12.0(7)XK
- 3640 - 11.2(9)XA
- 3620 - 11.2(9)XA
- 2691 - Not Available
- 2650 - Not Available
- 2600XM Series - Not Available
- 2600 series - Not Available
- 1720 - Not Available
- 1600 series - Not Available
Product Name CISCO ASR1000-SIP10 Input Voltage - 110 V AC
- 220 V AC
Interfaces/Ports Details 12 x Channel Digital Modem Alt Part No NM12DM Product Type Network Module Additional Information - Modular Router Solutions:
- Dialup Remote Access
- VPN & Firewall Solutions
- Features at a Glance:
- The product offers up to 30 digital modems per Cisco 3620 or 3725.
- The digital modem network module offers up to 60 digital modems per Cisco 3640 or 3745.
- The module offers up to 120 digital modems in a Cisco 3660.
- The network module requires one slot in a Cisco 3600 or 3700.
- Each network module supports up to 30 digital modems.
- Each modem is fully software upgradable.
- Speeds up to 56 kbps (V.90 and V.92) are supported.
- The module supports V.42 and V.44 compression algorithms.
- The number of modems per chassis can be easily increased on site.
- LEDs indicate when the network module is enabled or when modem banks are in use.
- The network module supports PRI, BRI, Channelized T1 (CT1), and R2 signaling
- The network module offers V.110 support.
- Supported Configurations:
- Cisco 3620 and 3725: One digital modem network module
- Cisco 3640 and 3745: Two digital modem network modules
- Cisco 3660: Four digital modem network modules
- Upgradability:
- Software upgradable to future modem and fax standards
- Physical Characteristics:
- Six modems per modem module
- Up to five modem modules per network module
- Error correcting link access protocols:
- V.42 Link Access Procedure for Modems (LAPM), Microcom Networking Protocols (MNP) 2-4
- Carrier protocols:
- V.92* (does not include PCM support; requires Portware 2.9.1.0 and Cisco IOS 12.2(11)YT)
- V.90 (requires Portware 2.5.1.0 and Cisco IOS 11.(2)16P or Cisco IOS 11.3.(6)T or higher)
- K56Flex
- V.110 support
- ITU V.23 at 75 and 1200 bps
- Bell 103 at 300 bps
- ITU V.21 at 300 bps
- ITU V.22 at 1200 bps
- Bell 212A at 1200 bps
- ITU V.22bis at 2400 bps
- ITU V.32 up to 9600 bps
- ITU V.32bis up to 14,400 bps
- V.32 turbo up to 19,200 bps
- V.34 up to 33,600 bps
- *Note: V.92 is not supported on 3620 until sixth Cisco IOS 12.2T release
- Compression protocols:
- V.42bis (includes MNP-5)
- V.44* (requires Portware 2.9.1.0 and Cisco IOS 12.2(11)YT)
- * Note: V.44 is not supported on 3620 until sixth Cisco IOS 12.2T release
Power Source Power Supply SKU UNSPSC 43222600 SKU UPC 7.46E+11 - Description
-
Details
The new Cisco Integrated V.92 analog modem network module provides cost-effective analog telephone service connectivity for lower-density remote-access service (RAS), dial-out and fax-out modem access, asynchronous dial-on-demand routing (DDR) plus dial backup, and remote router management. Combined with the differentiated services delivered through Cisco IOS Software, Cisco 2600 Series, 3660, and 3700 series routers offer customers best-in-class scalability, flexibility, and investment protection, all in cost-effective, multifunctional platforms. - Reviews
-
