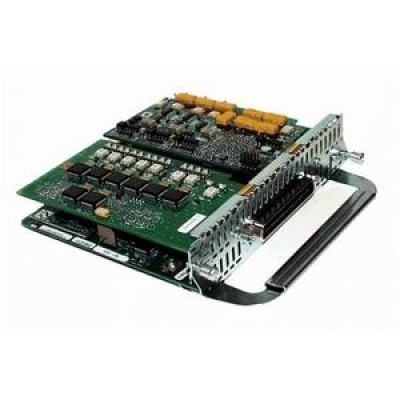

Manufacturer CISCO Manufacturer Part Number EM-HDA-4FXO SKU GROUP-137076 Marketing Information Cisco 2600 and 3600 high-density analog voice/fax network modules provide enterprises, managed service providers and service providers the ability to directly connect the PSTN and legacy telephony equipment to existing Cisco 2600 and Cisco 3600 routers. This provides immediate multiservice advantages, such as telephony toll bypass, new packet telephony applications, and full gateway integration within a Cisco AVVID (Architecture for Voice Video and Integrated Data) IP telephony architecture. Description 4 x FXO Module Type EM Network Modules Application/Usage Data Networking Brand Cisco Compatibility - Cisco 2600 Series
- Cisco 3600 Series
- Cisco 3700 Series Products
Product Name High-Density Analog Voice/Fax Network Module Interfaces/Ports Details 4 x RJ-21 Port FXO WAN Limited Warranty 90 Alt Part No EMHDA4FXO Product Type Expansion Module Additional Information - Use to provide off-premise analog connections to the central office in the U.S., Canada, and other countries (configurable). Includes support for battery polarity reversal detection and Caller ID.
- Interface Type: Foreign exchange office
- Cisco IOS Software Requirement: 12.2(2)XT / 12.2.(8)T or later for Cisco 2600/3600
- Signaling Formats: Loop-start, ground-start
- Address Signaling Formats:
- - In-band DTMF
- - Out-of-band pulse (10/20 pps)
- Tone Disconnect Supervision: Call disconnect on progress tone of less than 600 Hz
- Battery Polarity Reversal Detection: Detection of disconnect supervision and far-end answer supervision via battery polarity reversal
- Power Interrupt Disconnect: Call disconnect on power interrupt of more than 600 msec
- Power Failover port: During power failure, one FXO port "fails over" (gets connected) to a standby port with an analog phone
- MTBF: 1,150,000 hours
- Feature :
- Voice/Fax over IP
- Voice/Fax over Frame Relay
- Voice over ATM
- Connection Trunk
- LVBO (Local Voice Busy-Out)
- Caller ID Support
- Call Admission Control using RTR
- Robust Router-Based Solution
- Modular Architecture
- Voice and Fax over Same Port
- Works with Existing Phones, Faxes, PBXs, and Key Systems
- H.323 v2/v3 Compatibility
- High-Performance DSP Architecture
- ITU Standard codecs such as G.729, G.729a/b, and G.711
- Advanced Quality of Service (QoS) Mechanisms
- Compressed Real-Time Protocol and Multilink Point-to-Point Protocol Fragmentation and Interleaving
- Silence Suppression/Voice Activity Detection
- Comfort Noise Generation
- Dial Plan Mapping
- Dual Tone Multifrequency (DTMF) Tone Processing
- T.30 Protocol Recognition
- Country-Specific Signaling
- Autocalling
- Hunt Groups
- Battery Polarity Reversal Detection and Initiation
- Supervisory Disconnect
- FXO power failover
- List of standard codecs supported:
- High Complexity:
- - G.711 a-law and u-law
- - G.726 @ 32k, 24k, and 16k
- - G.728
- - G.729, A, B and AB
- - G.723.1 @5.3k and 6.3k
- - clear channel codec, and fax relay
- -Medium Complexity:
- - G.711 a-law and u-law
- - G.726 @ 32k, 24k, and 16k
- - G.729A and AB
- - clear channel codec, and fax relay
- -Low Complexity:
- - G.711 a-law and u-law
- Homologation:
- USA
- Canada
- CE countries:
- - European Community countries:
- - Austria
- - Belgium
- - Denmark
- - Finland
- - France
- - Germany
- - Greece
- - Ireland
- - Italy
- - Luxemburg
- - Netherlands
- - Portugal
- - Spain
- - Sweden
- - United Kingdom
Shipping Weight (Approximate) 1.29 lb SKU UNSPSC 43222600 SKU UPC 7.46E+11 - Description
-
Details
4 x FXO - Reviews
-
