- Product Specs
-
Additional Information

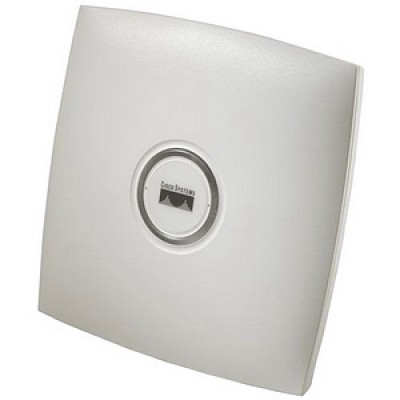

Manufacturer CISCO Manufacturer Part Number AIR-LAP1131AG-S-K9 SKU GROUP-114691 Ethernet Technology Fast Ethernet Marketing Information Cisco Aironet 1131AG Non-modular IEEE 802.11a/b/g Lightweight Access Point provide high-capacity, high-security, enterprise-class features in an unobtrusive, office-class design, delivering WLAN access with the lowest total cost of ownership. Two high-performing radios provide simultaneous support for 802.11a and 802.11g standards, delivering 108 Mbps data rates in the 5 and 2.4 GHz bands to distances surpassing that of previous-generation radios. For smooth migration, the Cisco Aironet 1131AG Non-modular IEEE 802.11a/b/g Lightweight Access Point takes full advantage of the dual-band capabilities of today's WLAN clients, while providing full backward compatibility for legacy 802.11b clients. Description 108Mbps - 1 x Series 1130 Access Point Height 7.5" Depth 1.3" Antenna Gain 4.5 dBi Antenna Type Omnidirectional Antenna Brand Cisco Certifications & Standards - IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.11i
- IEEE 802.1x
- Wi-Fi
- Safety:
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- UL 2043
- IEC 60950-1
- EN 60950-1
- Radio Approvals:
- FCC Part 15.247
- FCC Part 15.407
- RSS-210 (Canada)
- EN 300.328 (Europe)
- EN 301.893 (Europe)
- EMI and Susceptibility (Class B):
- FCC Part 15.107
- FCC Part 15.109
- ICES-003 (Canada)
- EN 301.489-1(Europe)
- EN 301.489-17 (Europe)
Form Factor - Wall Mountable
- Ceiling Mountable
Product Name Aironet 1131AG Non-modular IEEE 802.11a/b/g Lightweight Access Point Indoor Antenna Range 400 ft Input Voltage - 110 V AC
- 220 V AC
ISM Band Yes ISM Minimum Frequency 2.41 GHz Limited Warranty 1 Year Management - BootP
- Secure Shell (SSH) Protocol
- Secure HTTP (HTTPS)
- Trivial File Transfer Protocol (TFTP)
- FTP
- Telnet
- Console port
- Simple Network Management Protocol (SNMP) MIB I and MIB II
- CiscoWorks Resource Manager Essentials (RME)
- CiscoWorks Software Image Manager (SWIM)
- CiscoWorks Campus Manager
- CiscoWorks CiscoView
- CiscoWorks WLSE
Management Port Yes Alt Part No AIRLAP1131AGSK9 Product Type Wireless Access Point Outdoor Antenna Range 950 ft Additional Information - Antennas Frequency Band:
- 2.4 GHz
- 5 GHz
- Singapore channels:
- 8 channels: 5.15 to 5.35 GHz
- 12 channels: 5.725 to 5.825 GHz
Product Line Aironet SKU UNSPSC 43222631 UNII Minimum Frequency 5.15 GHz UNII Maximum Frequency 5.83 GHz UNII Band Yes Wireless LAN Standard IEEE 802.11a/b/g Wireless Security - WEP encryption length: 40/128-bits
- IEEE 802.11i
- IEEE 802.1x
- WPA
- WPA2
- TKIP
- LEAP
- EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
- Protected EAP- Generic Token Card (PEAP-GTC)
- PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2)
- EAP-Transport Layer Security (EAP-TLS)
- EAP-Tunneled TLS (EAP-TTLS)
- EAP-Subscriber Identity Module (EAP-SIM)
- AES
- AES-CCMP encryption
- Extensible Authentication Protocol (EAP)
Wireless Transmission Speed 108 Mbit/s - Description
-
Details
108Mbps - 1 x - Reviews
-
