- Product Specs
-
Additional Information

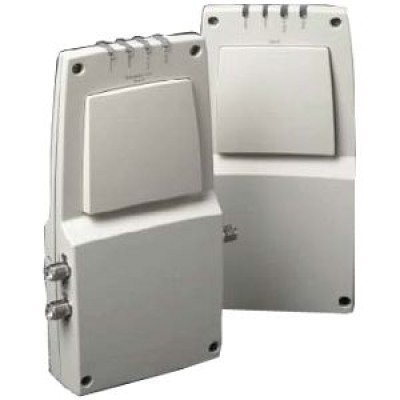

Manufacturer CISCO Manufacturer Part Number AIR-AP1232AG-N-K9 SKU GROUP-114366 Ethernet Technology Fast Ethernet Marketing Information The Cisco Aironet AP1232AG Access Point delivers the versatility, high capacity, security, and enterprise-class features required in more challenging RF environments. It is designed for wireless LANs in rugged environments or installations that require specialized antennas, and features dual antenna connectors for extended range, coverage versatility, and more flexible installation options. The Cisco Aironet AP1232AG combines antenna versatility with industry-leading transmit power, receive sensitivity, and delay spread for high multipath and indoor environments, providing reliable performance and throughput for the most demanding requirements. Description 54Mbps Height 1.7" Depth 7.2" Brand Cisco Certifications & Standards - Wi-Fi
- not FCC configuration
- Safety:
- UL 60950-1
- CAN/CSA C22.2 No. 60950-1
- IEC 60950-1
- EN 60950-1
- UL 2043
- FIPS 140-2 Pre-Validation List
- Common Criteria
- Radio Approvals:
- FCC Part 15.247
- RSS-210 (Canada)
- EN 300.328, EN 301.893 (Europe)
- ARIB-STD 33 (Japan)
- ARIB-STD 66 (Japan)
- ARIB-STD T71 (Japan)
- AS/NZS 4771, 4268.2 (Australia and New Zealand)
- EMI and Susceptibility (Class B)
- FCC Part 15.107 and 15.109
- ICES-003 (Canada)
- VCCI (Japan)
- EN 301.489-1 and -17 (Europe)
- AS/NZS 3548
- Security:
- WPA2
- WPA
- 802.11i
- 802.1X
- AES
- TKIP
- Other:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- FCC Bulletin OET-65C
- RSS-102
Product Name Aironet 1230AG 802.11a/b/g Access Point Indoor Antenna Range 500 ft Input Voltage - 110 V AC
- 220 V AC
- 48 V DC
ISM Band Yes ISM Minimum Frequency 2.41 GHz Limited Warranty 1 Year Alt Part No AIRAP1232AGNK9 Product Type Wireless Access Point Outdoor Antenna Range 950 ft Additional Information - Housing:Die-cast aluminum
- Processor: IBM PowerPC405 (200 MHz)
- Software:Cisco IOS Software Release 12.3(4)JA or later LWAPP 3.1 or later
- Memory:
- 16 MB RAM
- 8 MB Flash memory
Product Line Aironet SKU UNSPSC 43222631 SKU UPC 8.83E+11 UNII Minimum Frequency 5.15 GHz UNII Maximum Frequency 5 GHz UNII Band Yes Wireless LAN Standard IEEE 802.11a/b/g Wireless Security - Authentication:
- 802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP- Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2)
- MAC address and standard 802.11 authentication mechanisms
- Encryption:
- AES-CCMP encryption (WPA2)
- TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP
- Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits
Wireless Transmission Speed 54 Mbit/s - Description
-
