Quick Overview
108Mbps - 1 x

In stock

MFR Part # Condition Our Price
Request Quote

100% Secure

100% Money-Back Guarantee

Best Price

Paypal world seller


Additional Information

Manufacturer CISCO
Manufacturer Part Number AIR-AP1232AG-E-K9
SKU GROUP-114364
Ethernet Technology Fast Ethernet
Marketing Information

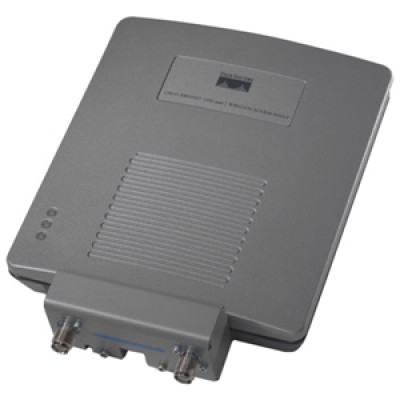

  • Cisco Aironet 1232AG 802.11a/b/g Wireless Access Point delivers the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. It extends the security, scalabililty, reliability, ease of deployment, and manageability available in wired networks to the wireless infrastructure.
  • Running Cisco IOS Software, makes the Access Point supports link role flexibility which provides both access point and bridge functionality through configuration of each radio as an access point, repeater, root bridge, non-root bridge, or workgroup bridge. This configuration flexibility enables the Access Point to address applications ranging from basic wireless LAN coverage to wireless LAN coverage with wireless backhaul to more traditional bridging applications.
Description 108Mbps - 1 x
Height 1.7"
Depth 7.2"
Brand Cisco
Certifications & Standards
  • Wi-Fi
  • ETSI configuration
  • Safety:
  • UL 60950-1
  • CAN/CSA C22.2 No. 60950-1
  • IEC 60950-1
  • EN 60950-1
  • UL 2043
  • FIPS 140-2 Pre-Validation List
  • Common Criteria
  • Radio Approvals:
  • FCC Part 15.247
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 33 (Japan)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • AS/NZS 4771, 4268.2 (Australia and New Zealand)
  • EMI and Susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • AS/NZS 3548
  • Security:
  • WPA2
  • WPA
  • 802.11i
  • 802.1X
  • AES
  • TKIP
  • Other:
  • IEEE 802.11g and IEEE 802.11a
  • FCC Bulletin OET-65C
  • RSS-102
Form Factor Ceiling Mountable
Product Name Aironet 1230AG 802.11a/b/g Access Point
Indoor Antenna Range 500 ft
Input Voltage
  • 48 V DC
  • 220 V AC
ISM Band Yes
ISM Minimum Frequency 2.41 GHz
Limited Warranty 1 Year
  • Telnet
  • Console port management
  • Trivial File Transfer Protocol (TFTP)
  • Simple Network Management Protocol (MIB I and MIB II)
  • CiscoWorks Resource Manager Essentials (RME)
  • CiscoWorks Software Image Manager (SWIM)
  • CiscoWorks Campus Manager
  • CiscoWorks CiscoView
  • CiscoWorks WLSE
Management Port Yes
Alt Part No AIRAP1232AGEK9
Product Type Wireless Access Point
Outdoor Antenna Range 950 ft
Additional Information
  • Software:Cisco IOS Software Release 12.3(4)JA or later LWAPP 3.1 or later
  • Housing:Die-cast aluminum
  • Processor: IBM PowerPC405 (200 MHz)
  • Memory:
  • 16 MB RAM
  • 8 MB Flash memory
Product Line Aironet
NSN Part Number 5.90E+12
SKU UNSPSC 43222631
SKU UPC 8.83E+11
UNII Minimum Frequency 5.15 GHz
UNII Maximum Frequency 5 GHz
UNII Band Yes
Wireless LAN Standard IEEE 802.11a/b/g
Wireless Security
  • Authentication:
  • 802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP- Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2)
  • MAC address and standard 802.11 authentication mechanisms
  • Encryption:
  • AES-CCMP encryption (WPA2)
  • TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP
  • Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits
Wireless Transmission Speed 108 Mbit/s


108Mbps - 1 x
