- Product Specs
-
Additional Information
Manufacturer CISCO Manufacturer Part Number AIR-AP1232AG-A-K9 SKU GROUP-114361 Ethernet Technology Fast Ethernet Marketing Information Cisco Aironet 1230AG Series IEEE 802.11a/b/g access points deliver the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. It is designed specifically for challenging RF environments like factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range. Description 54Mbps Height 1.6" Depth 7.2" Brand Cisco Certifications & Standards - Safety:
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- IEC 60950-1
- EN 60950-1
- UL 2043
- NIST FIPS 140-2 level 2 validation FIPS 140-2 Pre-Validation List
- Common Criteria (Cisco IOS Software only)
- Radio Approvals:
- FCC Part 15.247
- RSS-210 (Canada)
- EN 300.328, EN 301.893 (Europe)
- ARIB-STD 33 (Japan)
- ARIB-STD 66 (Japan)
- ARIB-STD T71 (Japan)
- AS/NZS 4771, 4268.2 (Australia and New Zealand)
- FCC Part 15.107 and 15.109
- ICES-003 (Canada)
- VCCI (Japan)
- EN 301.489-1 and -17 (Europe)
- AS/NZS 3548
- Security:
- 802.11i, WPA2, WPA
- 802.1X
- AES, TKIP
- Other:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- FCC Bulletin OET-65C
- RSS-102

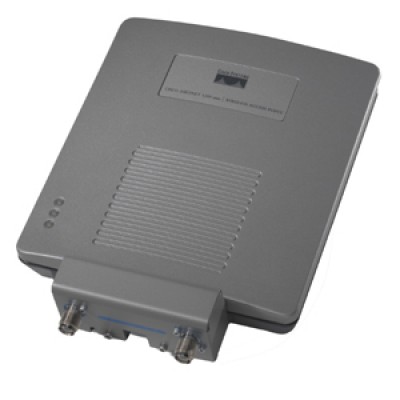

Product Name Aironet 1232AG Wireless Access Point Indoor Antenna Range 500 ft Input Voltage - 110 V AC
- 220 V AC
- 48 V DC
ISM Band Yes ISM Minimum Frequency 2.41 GHz Limited Warranty 1 Year Management - BootP
- Secure Shell (SSH) Protocol
- Secure HTTP (HTTPS)
- Trivial File Transfer Protocol (TFTP)
- FTP
- Telnet
- console port
- Simple Network Management Protocol (SNMP)
- MIB I and MIB II
- CiscoWorks Resource Manager Essentials (RME)
- CiscoWorks Software Image Manager (SWIM)
- CiscoWorks Campus Manager
- CiscoWorks CiscoView
- CiscoWorks WLSE
Alt Part No AIRAP1232AGAK9 Product Type Wireless Access Point Outdoor Antenna Range 950 ft Additional Information - Antennas:
- 2.4 GHz Dual RP-TNC connectors
- 5 GHz Dual RP-TNC connectors
Product Line Aironet SKU UNSPSC 43222631 UNII Minimum Frequency 5.15 GHz UNII Maximum Frequency 5 GHz UNII Band Yes Wireless LAN Standard IEEE 802.11a/b/g Wireless Security - WPA
- WPA2 (802.11i)
- IEEE 802.11 WEP
- 802.1X EAP
Wireless Transmission Speed 54 Mbit/s - Description
-
Details
54Mbps - Reviews
-
