- Product Specs
-
Additional Information

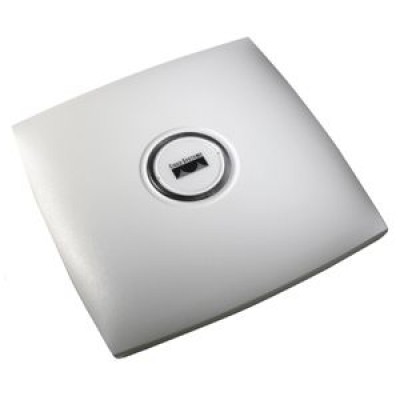

Manufacturer CISCO Manufacturer Part Number AIR-AP1131AG-E-K9 SKU GROUP-114257 Ethernet Technology Fast Ethernet Marketing Information - Cisco Aironet 1131 802.11a/b/g Wireless Access Point provides high-capacity, high-security, enterprise-class features in an unobtrusive, office-class design, delivering WLAN access with the lowest total cost of ownership. With high-performing dual IEEE 802.11a and 802.11g radios, the Aironet 1131 802.11a/b/g Wireless Access Point provides a combined capacity of up to 108 Mbps to meet the needs of growing WLANs. In addition, when running Cisco IOS Software the Cisco Aironet 1131 802.11a/b/g Wireless Access Point supports both access point and workgroup bridge functionality. It avoids interference in congested airspace, simplifying the deployment of high-capacity networks. For smooth migration, the access point takes full advantage of the dual-band capabilities of today's WLAN clients, while providing full backward compatibility for legacy 802.11b clients.
- The Cisco Aironet 1131 Wireless Access Point delivers optimal value for offices and similar environments. Built-in antennas provide omnidirectional coverage specifically designed for today's open workspaces. A multipurpose mounting bracket easily secures the access point to ceilings and walls.
Description 108Mbps - 1 x Series 1130 Access Point Height 7.5" Depth 1.3" Antenna Gain 4.5 dBi Antenna Type Omnidirectional Antenna Brand Cisco Certifications & Standards - Wi-fi
- UL 60950-1
- CAN/CSA-C22.2 No. 60950-1
- UL 2043
- IEC 60950-1
- EN 60950-1
- NIST FIPS
- RSS-210 (Canada)
- RSS-102
- EMI and susceptibility (Class B)
- ICES-003 (Canada)
- WPA2
- WPA
- IEEE 802.1X
- IEEE 802.11i
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- FCC Part 15.107 and 15.109
- FCC Bulletin OET-65C
- FCC Part 15.247, 15.407
- FCC Part 15.247, 15.407
Form Factor - Wall Mountable
- Ceiling Mountable
Product Name Aironet 1131AG Access Point Indoor Antenna Range 449.5 ft ISM Band Yes ISM Minimum Frequency 2.40 GHz Management - Telnet
- Console port
- Simple Network Management Protocol (SNMP)
- Trivial File Transfer Protocol (TFTP)
- CiscoWorks Resource Manager Essentials (RME)
- CiscoWorks Software Image Manager (SWIM)
- CiscoWorks Campus Manager
- CiscoWorks WLSE
- CiscoWorks CiscoView
Management Port Yes Alt Part No AIRAP1131AGEK9 Product Type Wireless Access Point Outdoor Antenna Range 951.4 ft Additional Information - Remote Management Protocol:
- SNMP
- Telnet
- HTTP
- HTTPS
- Interfaces:
- 1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45
- 1 x network - Radio-Ethernet
Product Line Aironet NSN Part Number 5.90E+12 SKU UNSPSC 43222631 SKU UPC 7.46E+11 UNII Minimum Frequency 5.15 GHz UNII Maximum Frequency 5.83 GHz UNII Band Yes Wireless LAN Standard IEEE 802.11a/b/g Wireless Security - LEAP
- AES
- 128-bit WEP
- 40-bit WEP
- TLS
- PEAP
- TKIP
- WPA
- WPA2
Wireless Transmission Speed 108 Mbit/s - Description
-
Details
108Mbps - 1 x - Reviews
-
