- Product Specs
-
Additional Information

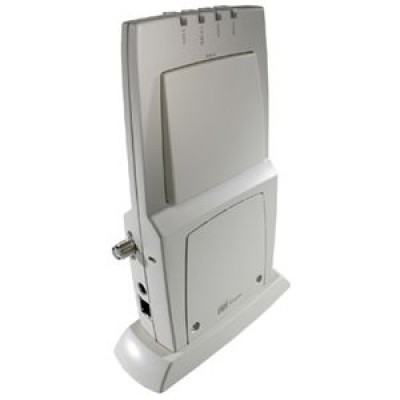

Manufacturer CISCO Manufacturer Part Number AIR-AP1030-B-K9 SKU GROUP-114204 Ethernet Technology Fast Ethernet Marketing Information The Aironet 1030 Remote Edge Lightweight Access Point is specifically designed for operation with Cisco Wireless LAN Controllers and the Wireless Control System management tool. It provides dual band support for both 802.11a, 802.11b and 802.11g, simultaneous air monitoring for dynamic, real time RF management. In addition, Cisco Aironet 1030 Remote Edge Lightweight Access Point handles time-sensitive functions, such as Layer 2 encryption, that enable Cisco wireless LANs to securely support voice, video, and data applications. Description 54Mbps Height 9.6" Depth 1.6" Antenna Gain 6 dBi Antenna Type Sector Antenna Brand Cisco Certifications & Standards - IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 80211i
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3af
- UL listed
- TUV/GS mark
- CE mark
- CB scheme
- USL/CSL per UL60950
- Safety:
- UL 60950 (Third Edition)
- UL 2043
- EN 50385:2002
- RSS 102
- FCC OET 65
- Electrical Safety:
- UL 60950-1 (First Edition)
- CSA C22.2 No. 60950-1-03
- Radio Approvals:
- FCC Part 15 subparts C and E
- EN 300 328 V1.4.1
- EN 301 893 V1.2.3
- RSS-210
- ARIB STD-33A/STD-T66
- ARIB STD T-71
- EMI and susceptibility (Class A):
- FCC parts 15.107 and 15.109
- VCCI
- ICES-003
- Electromagnetic Compatibility (EMC):
- EN 60601-1-2 (Class B)
- EN 301 489-17 V1.2.1
- EN 301 489-1 V1.4.1
- ICES 003 (Class B)
- VCCI Class B
- EN 55022 (Class B)
Form Factor - Wall Mountable
- Ceiling Mountable
Product Name Aironet 1030 Remote Edge Lightweight Access Point Indoor Antenna Range 410 ft ISM Band Yes ISM Minimum Frequency 2.40 GHz Limited Warranty 1 Year Management - Zero-Touch Configuration and Management
- Simultaneous Air Monitoring and Data Service
- QoS (quality of service)
Alt Part No AIRAP1030BK9 Product Type Wireless Access Point Outdoor Antenna Range 2000 ft Additional Information - IEEE 802.3af Power over Ethernet (PoE) Support
- Future proof WLAN investment
- Internal and External Antenna Options provides flexible deployment and redeployment
- Antenna Connectors:
- IEEE 802.11a: One male RP-TNC connector
- IEEE 802.11b/g: Two male RP-TNC connectors
- Integrated Antennas(Gain):
- IEEE 802.11b/g : Gain 5.5 dBi
- IEEE 802.11a: Gain 6 dBi
Product Line Aironet SKU UNSPSC 43222631 UNII Minimum Frequency 5.15 GHz UNII Maximum Frequency 5.83 GHz UNII Band Yes Wireless LAN Standard IEEE 802.11a/b/g Wireless Security - Wi-Fi Protected Access (WPA)
- WPA 2
- IEEE 80211i
Wireless Transmission Speed 54 Mbit/s - Description
-
