Additional Information

Manufacturer CISCO
Manufacturer Part Number AIR-AP1030-A-K9
SKU GROUP-114203
Ethernet Technology Fast Ethernet
Marketing Information
  • Cisco Aironet AP1030 lightweight access point is specifically designed for operation with Cisco Wireless LAN Controllers and the Wireless Control System management tool. It provides dual band support for both 802.11a, 802.11b and 802.11g, simultaneous air monitoring for dynamic, real time RF management. In addition it handles time-sensitive functions, such as Layer 2 encryption, that enable Cisco wireless LANs to securely support voice, video, and data applications.
  • The AP1030 features both integrated sector antennas and an RP-TNC connector for external antennas and an expanded set of software features designed for a variety of specific applications. Remote Edge Access Point (REAP) capabilities allow the AP1030 to be deployed remotely from the wireless LAN controller making it ideal for branch office and small retail locations. The AP1030 delivers the same LAN security, performance, and RF management capabilities and can operate via most standard WAN technologies, including T1, Frame Relay, ATM, DSL, ISDN, and switched 56k. These capabilities enable IT managers to centrally control SSIDs, security parameters, and software loads for unified, enterprise wide wireless LAN services.
Description 54Mbps
Height 6"
Depth 1.6"
Antenna Type Sector Antenna
Brand Cisco
Certifications & Standards
  • Wi-Fi
  • WPA2
  • WPA
  • IEEE:
  • 802.11a
  • 802.11b
  • 802.11g
  • 80211i
  • 802.3
  • 802.3u
  • 802.3af
  • Safety:
  • UL 60950, Third Edition
  • UL 2043
  • EN 50385:2002
  • RSS 102
  • FCC OET 65
  • Electrical safety:
  • UL 60950-1:2003, First Edition
  • CSA C22.2 No. 60950-1-03
  • Radio:
  • US: FCC Part 15 subparts C and E
  • EN 300 328 V1.4.1
  • EN 301 893 V1.2.3
  • Canada: RSS-210
  • Europe: EN 301.893, EN 300.328
  • Japan: ARIB STD-33A/STD-T66, ARIB STD T-71
  • EMI and Susceptibility (Class A):
  • US: FCC parts 15.107 and 15.109
  • Canada: ICES-003
  • Japan: VCCI
  • Europe: EN 55022, EN 55024, EN 301.489-1 and -17
  • Electromagnetic compatibility (EMC):
  • EN 60601-1-2:1993 Class B
  • EN 301 489-17 V1.2.1; EN 301 489-1 V1.4.1
  • Subpart B of Part 15 of FCC Rules for Class B digital devices
  • Canada ICES 003 1997 Class B
  • VCCI Class B
  • EN 55022:1994, Class B, as modified by Amendment A1, dated 1995, and Amendment A2, dated 1997
  • Power supply safety:
  • AIR-PWR-1000=
  • AIR-PWRINJ-1000AF=
  • US, EU, worldwide: UL listed, TUV/GS mark, CE mark, CB scheme, USL/CSL per UL60950
  • Japan PSE
Form Factor
  • Ceiling Mountable
  • Wall Mountable

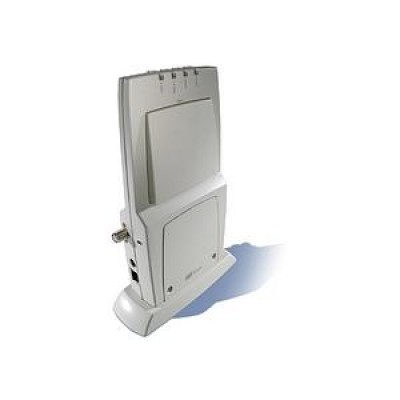

Product Name Aironet 1030 802.11a/b/g Wireless Access Point
Indoor Antenna Range 410 ft
Input Voltage 48 V DC
ISM Band Yes
ISM Minimum Frequency 2.40 GHz
Limited Warranty 1 Year
Alt Part No AIRAP1030AK9
Product Type Wireless Access Point
Outdoor Antenna Range 2000 ft
Additional Information
  • Regulatory Domain: FCC
  • Power: 48 VDC, 250 mA, 10W
  • Remote Edge Access Point (REAP) Capable
  • Antenna Connectors:
  • 802.11a: One male RP-TNC connector
  • 802.11b/g: Two male RP-TNC connectors
  • Interface and Indicators:
  • Network: 10/100 Mbps Ethernet (RJ-45 Link, Activity)
  • Power
  • Alarm
Product Line Aironet
SKU UNSPSC 43222631
UNII Minimum Frequency 5.15 GHz
UNII Maximum Frequency 5 GHz
UNII Band Yes
Wireless LAN Standard IEEE 802.11a/b/g
Wireless Security
  • IEEE 80211i
Wireless Transmission Speed 54 Mbit/s
